Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
1 / 5
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine
Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine

Mini Portable Borehole Small Cheap Crawler Borehole Full Hydraulic Diesel Engine Water Well Drilling Rig Machine

Customization: Available
After-sales Service: Online Technical Guidance
Warranty: 18 Months
Send Inquiry

Product Description

Product Overview
150m Efficient Water Well Drill Rig Diesel Engine Mini Portable

The Portable Diesel Water Well Drill Rig is a compact, high-efficient small-scale drilling equipment designed mainly for digging water wells. Powered by a diesel engine, it boasts strong power output—ideal for handling different soil types like clay, sand, and even soft rock. Its portable feature means it has a lightweight structure and is easy to transport, making it perfect for rural areas, remote construction sites, or small-scale farming operations.

Technical Parameters
Parameter Details
Model NO.RL150
CertificationCE, RoHS, ISO 9001:2000
ConditionNew
MotorDC Motor / Diesel Engine (30HP)
Drill Hole Diameter80-300mm
Drill Hole Depth100-150m
Bit TypeDiamond Bit
Drilling WayRotary
Weight0.85t - 1.2t
Suitable Rock TypesRocks of Medium Hardness
Dimensions2300*1300*2200mm
Cooling MethodWater/Hydraulic Cooling

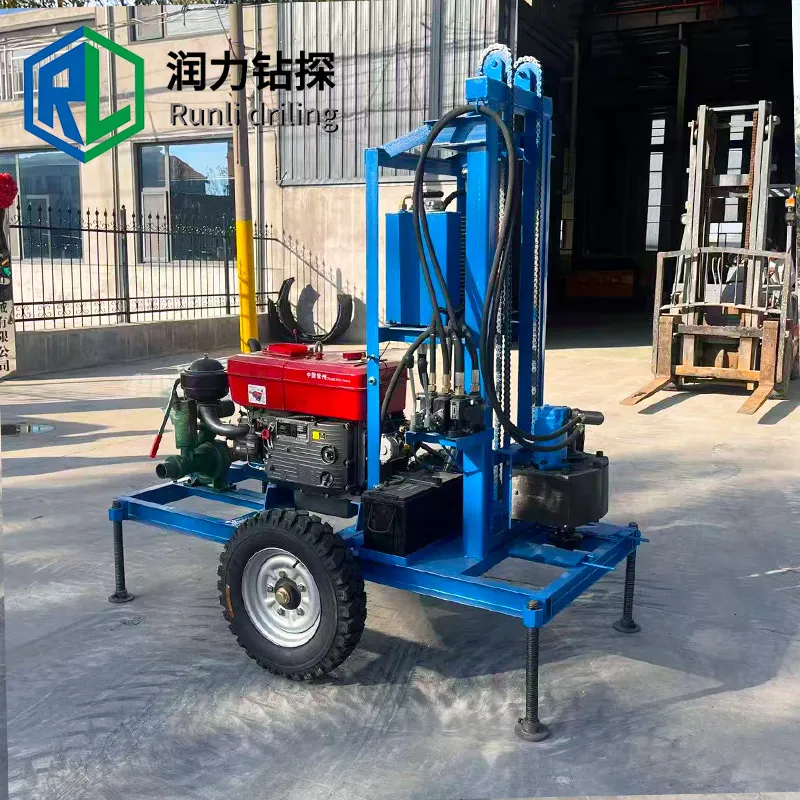

Water Well Drill Rig Main View
Main Applications
  • Rural Water Supply: Domestic wells and centralized supply.
  • Agricultural Irrigation: Farmland, orchards, and greenhouses.
  • Remote Sites: Highways, railways, and mining camps.
  • Emergency Rescue: Disaster zones and drought relief.
  • Ecological Engineering: Afforestation and wetland restoration.
Operation Demonstration
Key Configurations
  • Engine: High-torque, low-emission Tier III diesel engine.
  • Drilling System: Wear-resistant, speed-adjustable drill bit.
  • Portable Frame: Lightweight durable steel frame, easy to disassemble.
  • Control Panel: User-friendly with real-time monitoring.
  • Safety Devices: Overload protection and emergency stop.

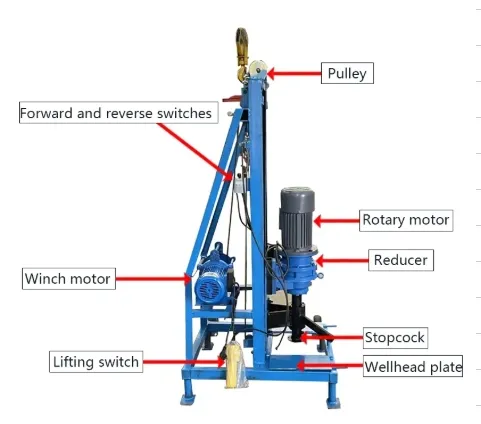

Configuration Details
Multi-Angle Display

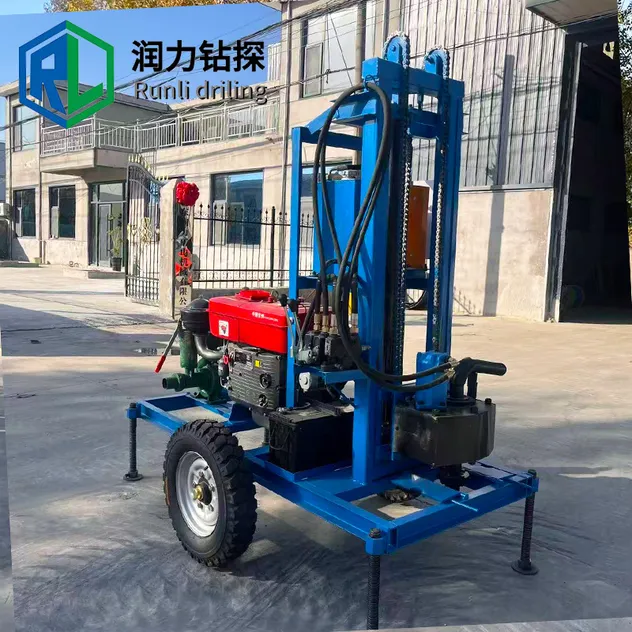

Right elevation

Right Elevation

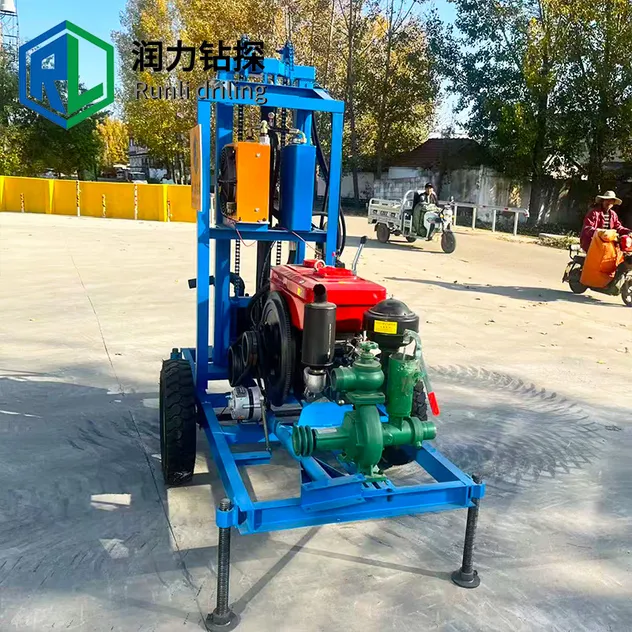

Left elevation

Left Elevation

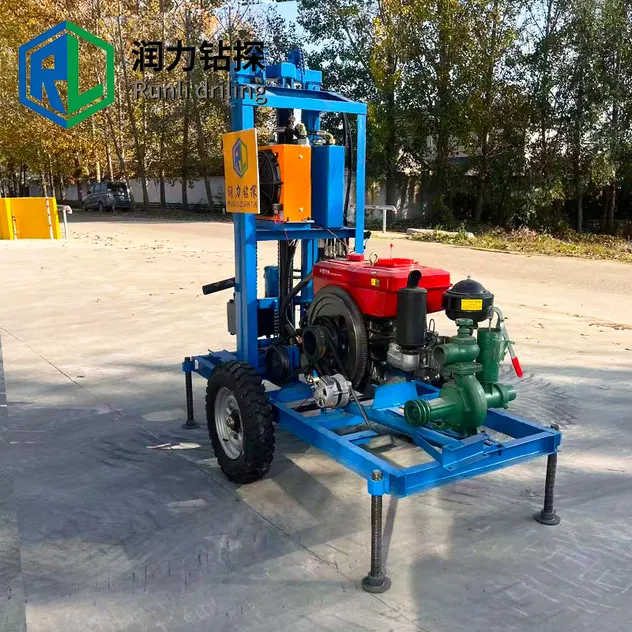

Front elevation

Front Elevation

Services & Capability
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours.
  • Global Support: 24/7 technical assistance.
  • Training: On-site or remote operation training.
Why Choose Us?
  • OEM/ODM capabilities.
  • Competitive pricing & bulk discounts.
  • Fast shipping & customs clearance support.
  • Turnkey project solutions.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in water well drilling rigs, core drilling rigs, and exploration equipment with a high global reputation.
How can I inspect the equipment before purchase?
We support on-site factory inspections, third-party company inspections, and real-time video inspections.
What is the typical delivery cycle?
Stock items deliver within 7 days. Standard production takes 15-20 days, while customized rigs require 25-30 days.
What documents are provided for international export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC certificates.
What is the warranty period for the drilling rig?
The standard warranty is 12 months or 2,000 operating hours, with optional extended coverage up to 36 months.
Can the equipment be customized for specific needs?
Yes, our engineering team can provide tailored designs and custom configurations to meet specific project requirements.
