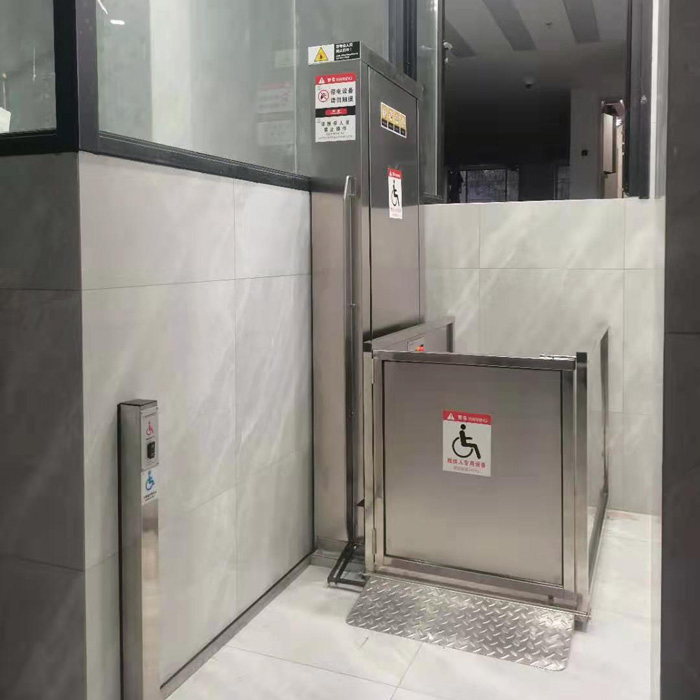

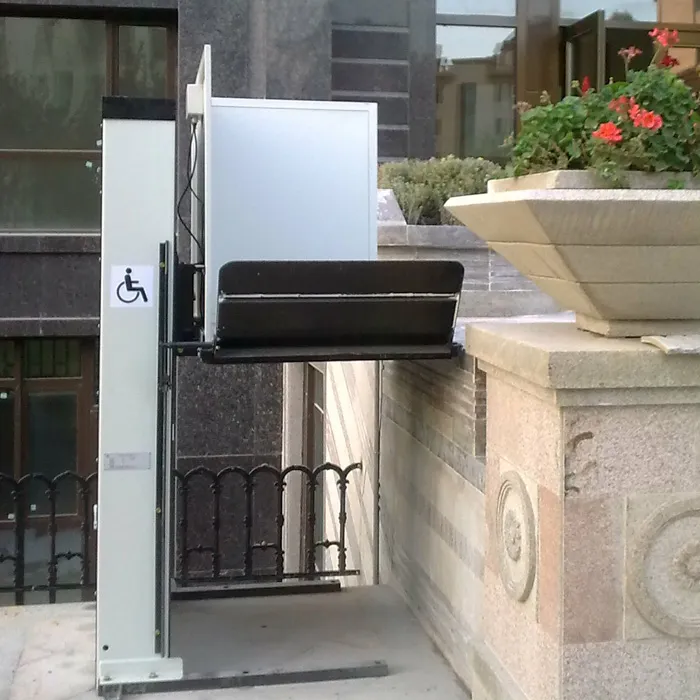

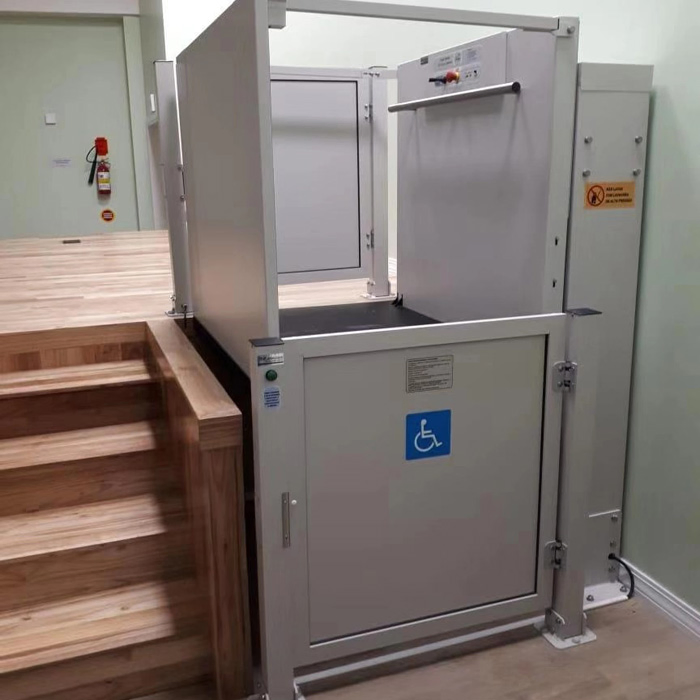

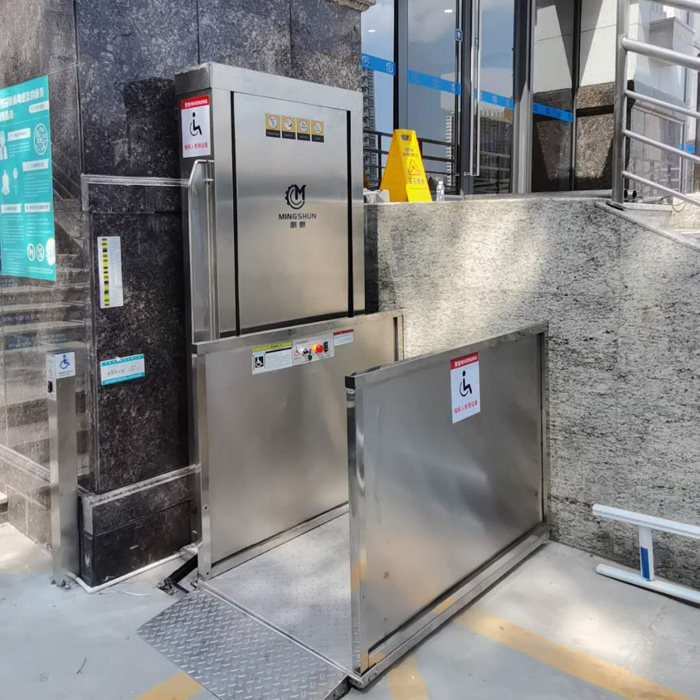

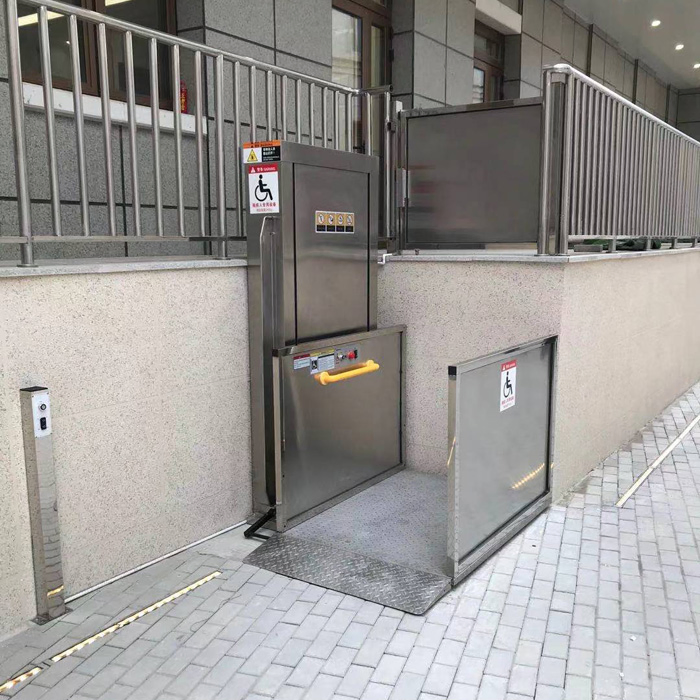

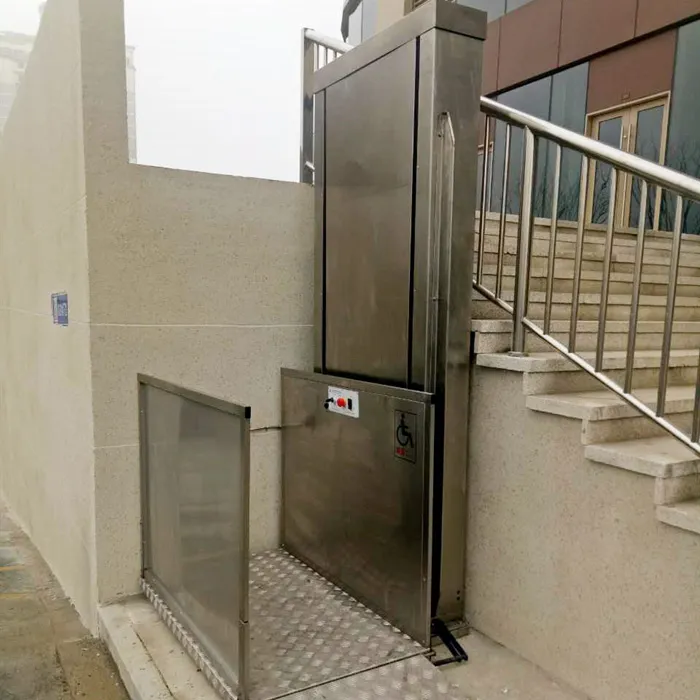

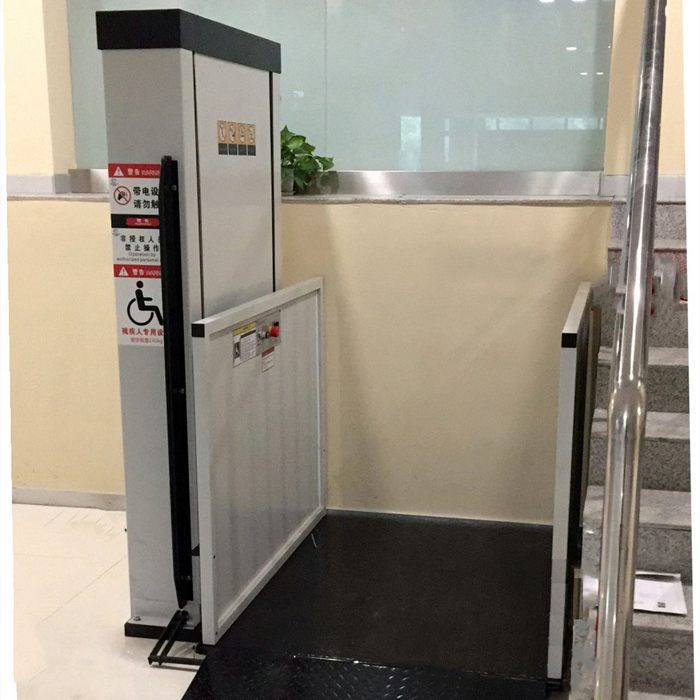

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts. It features smooth running speed, high safety, easy installation, small space required & no pits required.
| Technic Parameters and Functions |
| Voltage | 220V/50HZ or Customized |
| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm (H) |
| Lifting Height | 2000mm (Customizable) |
| Min Height of Base Plate | 60mm from the ground |
| Installation | No Foundation/Pit Required |
| Lifting Speed | 60mm/s (Inverter control, soft start/brake) |
| Max Loading | 240kg |
| Drive | Screw Drive |
| Power | 2.2kw 220V/AC |
| Environment | Indoor & Outdoor (-20°C to 60°C) |
| Safety Equipment | Safety Rocker, Overload Protection, Emergency Stop, Emergency Descent |

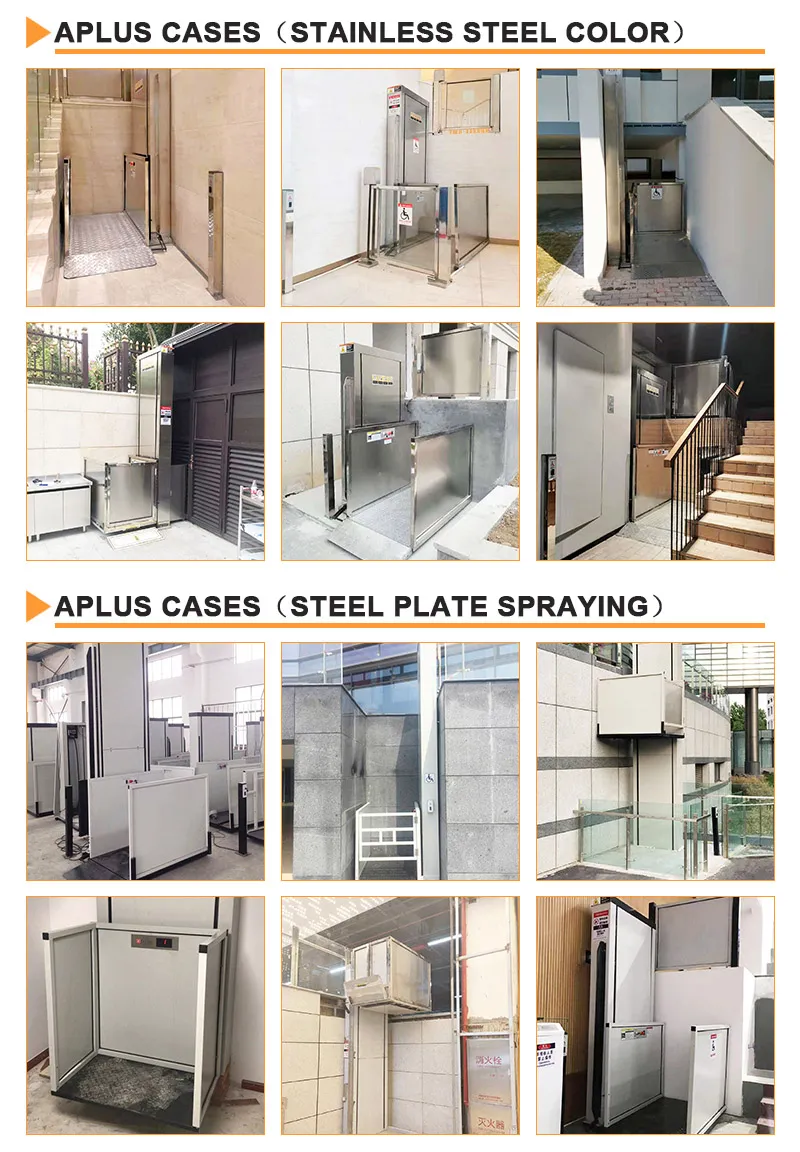

Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. Novel design, safety and stability, beautiful appearance, low noise, low temperature resistance. In line with ASME A18-1 and CSA-B613 standards.
Frequently Asked Questions
What is the maximum weight capacity of this wheelchair lift?
The standard model has a maximum loading capacity of 240kg to 250kg, suitable for a wheelchair and an escort.
Does this equipment require a pit for installation?
No, this wheelchair platform lift features a pit-free design and can be installed directly on the ground without a foundation.
Can the lifting height be customized for different buildings?
Yes, the lifting height is fully customizable, typically ranging from 1 meter up to 10 meters.
Is it suitable for outdoor use in cold climates?
Absolutely. It is designed for both indoor and outdoor environments with an operating temperature range of -20°C to 60°C.
What safety features are included to prevent accidents?
The lift includes a safety rocker to prevent sliding, overload protection, an emergency stop button, and an electric emergency descent system.
What are the power requirements for this lift?
The standard power is 2.2kw with 220V/50HZ voltage, though voltage can be customized based on local standards.
