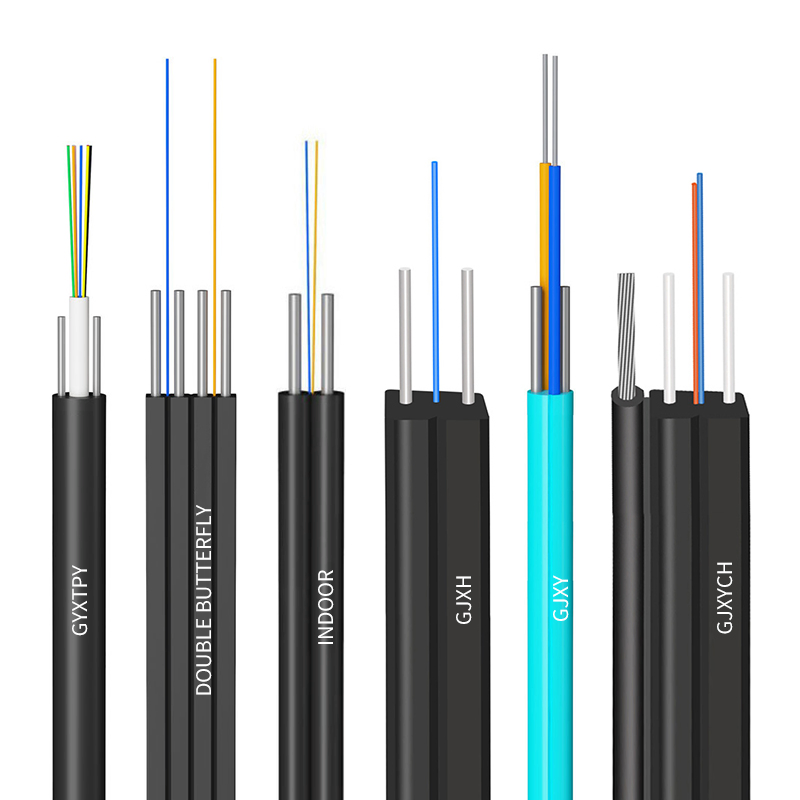

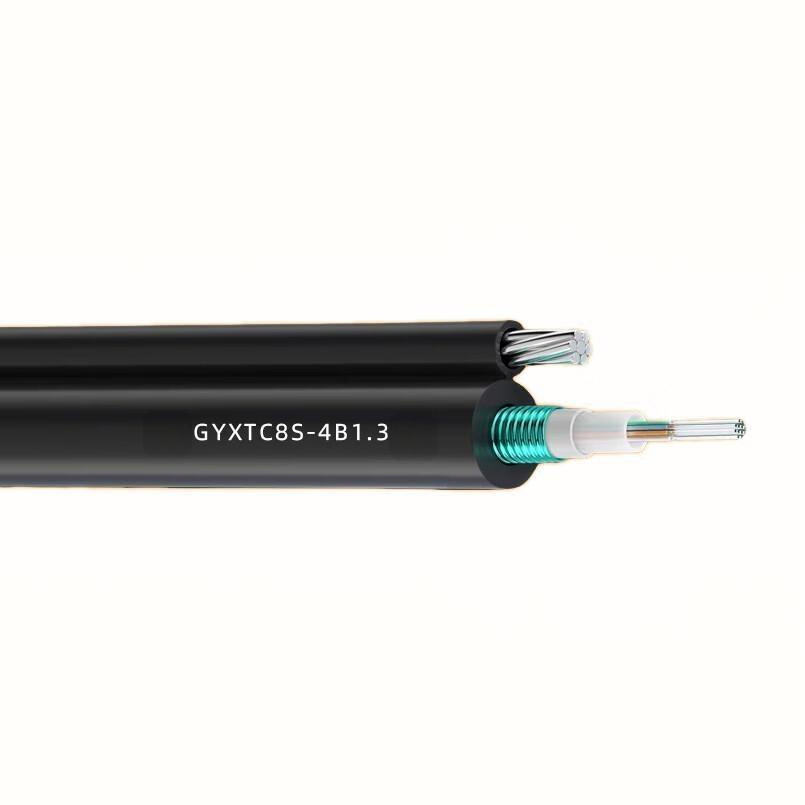

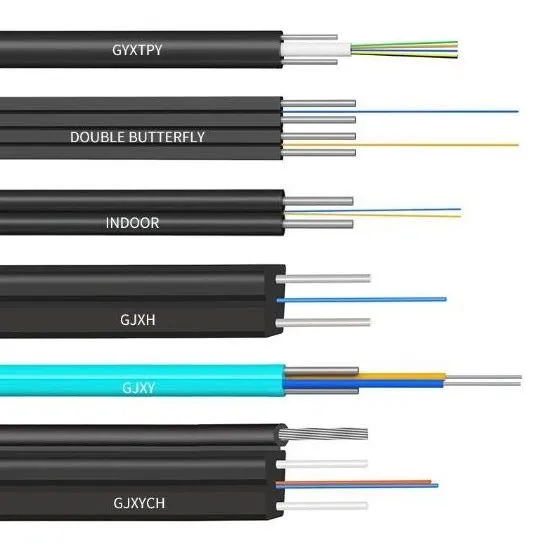

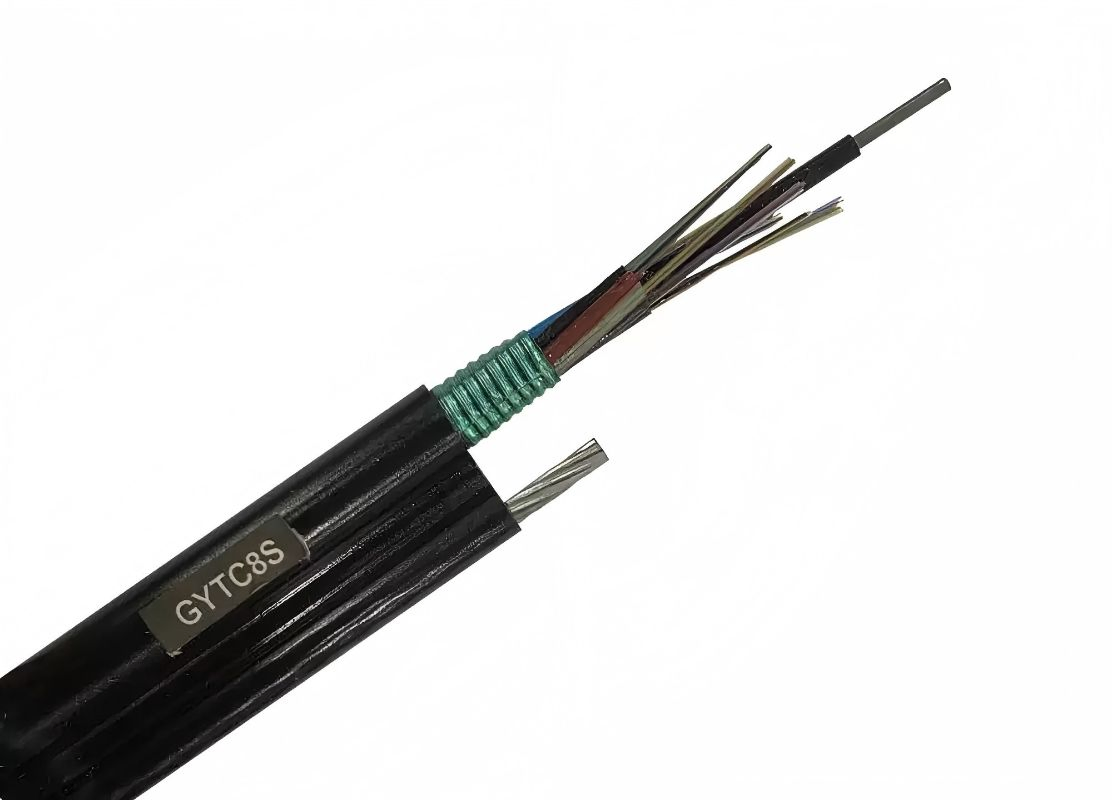

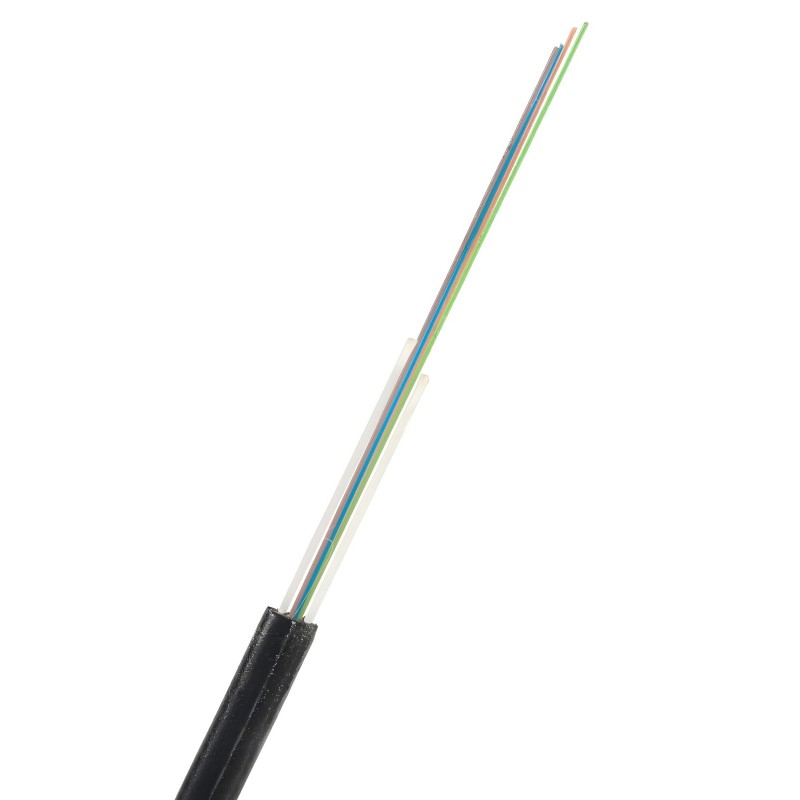

FTTH Outdoor Indoor Singlemode Self-Supporting Figure 8 Drop Cable

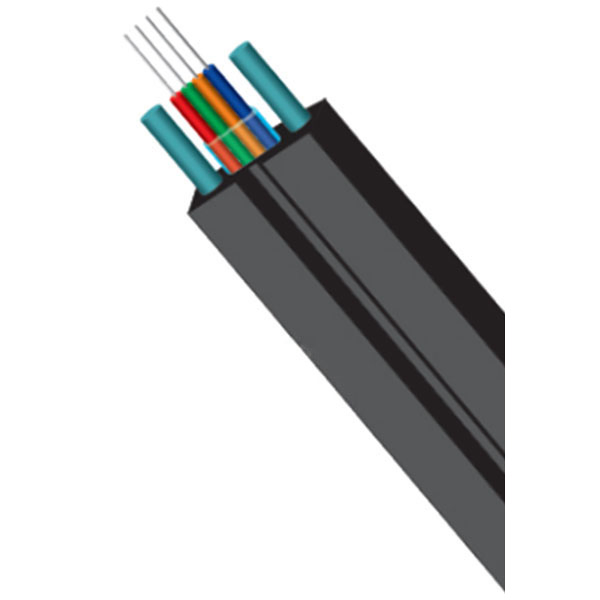

The FTTH drop cable is positioned in the centre with two parallel fiber reinforced plastics (FRP) placed at the two sides. A steel wire as the additional strength member is also applied to provide superior mechanical protection. The cable is finished with a durable black or colored PVC/LSZH sheath, making it ideal for self-supporting bow-type installations.
| Fiber Type | Attenuation (dB/km) | Bandwidth (MHz.km) | Min Bending Radius (mm) |
|---|---|---|---|
| G652D | 0.36/0.22 (1310/1550nm) | - | 16 |
| G657A1 | 0.36/0.22 (1310/1550nm) | - | 10 |
| G657A2 | 0.36/0.22 (1310/1550nm) | - | 7.5 |
| OM3 (50/125) | 3.0/1.0 (850/1300nm) | ≥1500/500 | 30 |
| OM4 (50/125) | 3.0/1.0 (850/1300nm) | ≥3500/500 | 30 |
| Fiber Count | Cable Diameter (mm) | Weight (kg/km) | Tensile Short/Long (N) | Crush Short/Long (N) |
|---|---|---|---|---|
| 1-4 Cores | 5.2 * 2.0 | 18 | 600 / 300 | 2200 / 1000 |
| 6-12 Cores | 3.0 * 9.0 | 27 | 1200 / 600 | 1100 / 500 |

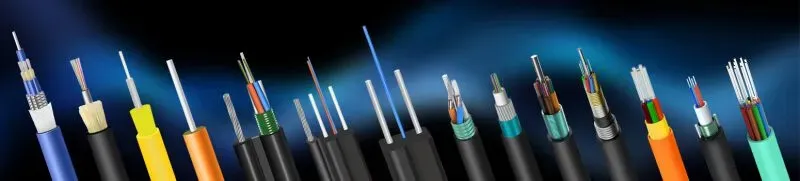

| Product Category | Visual Reference | Customization Details |
|---|---|---|
| Single Mode Cables |  |
G.652D, G.657A1/A2; PVC, LSZH, PE Jackets; LC, SC, FC, ST Connectors. |
| Multimode Cables |  |
OM2 / OM3 / OM4 / OM5; Plenum-rated jackets; Custom bundles and trunks. |
| Armored Cables |  |
Steel wire/tape armor; Ruggedized sheaths; Waterproof IP67/68 connectors. |

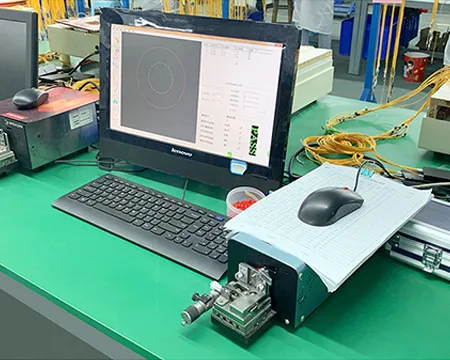

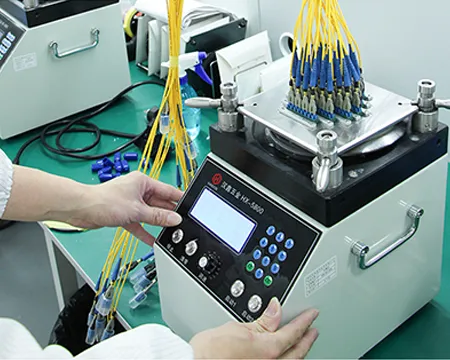

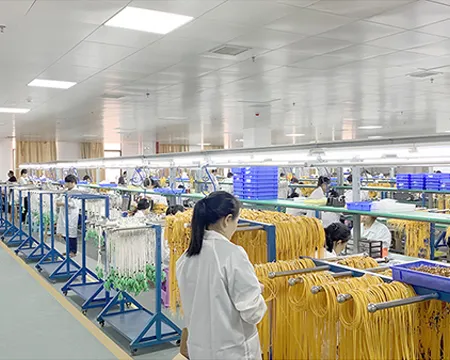

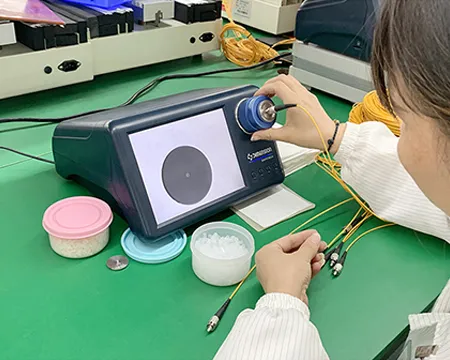

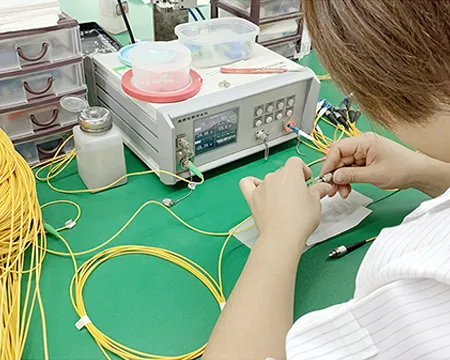

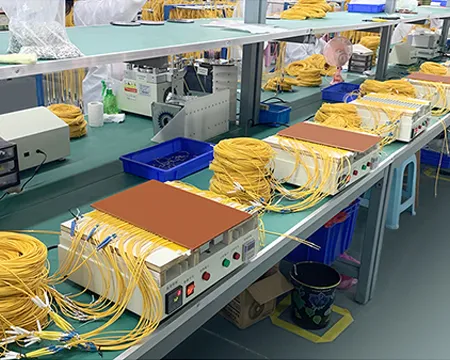

Our advanced manufacturing facility utilizes state-of-the-art equipment to ensure consistent quality and high output capacity.
