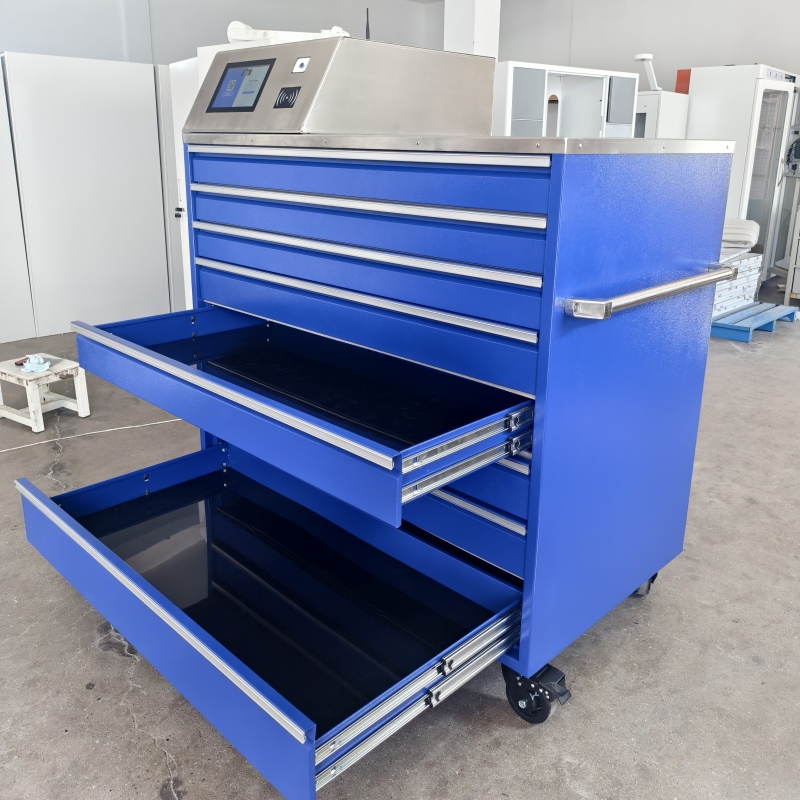

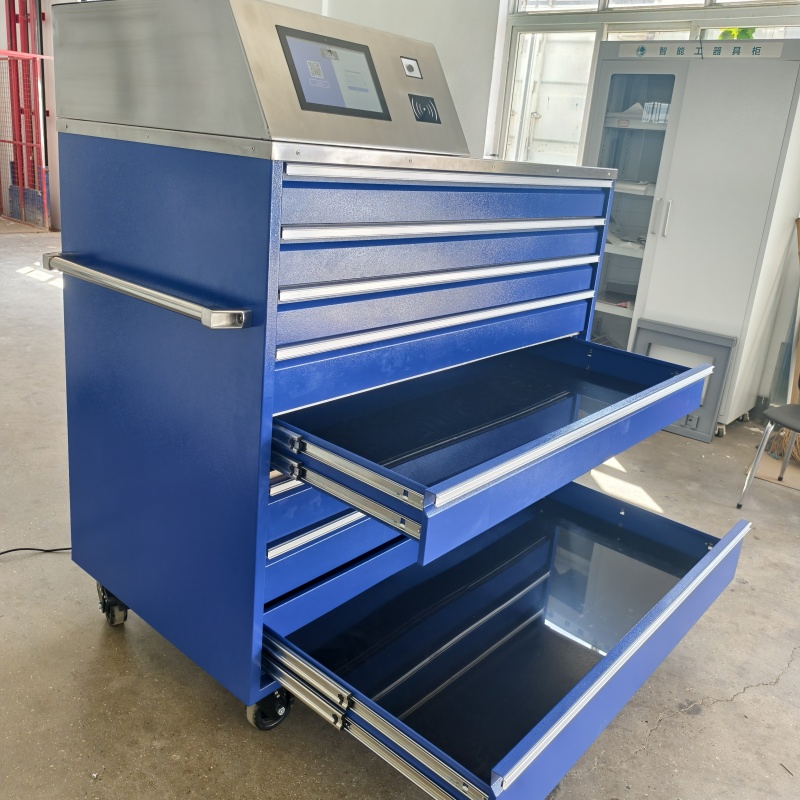

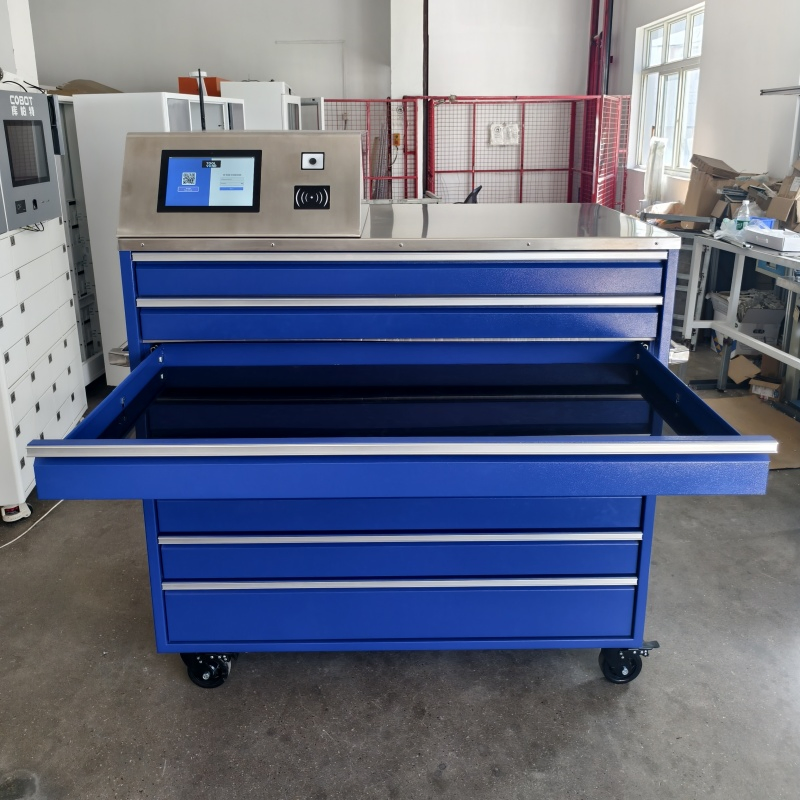

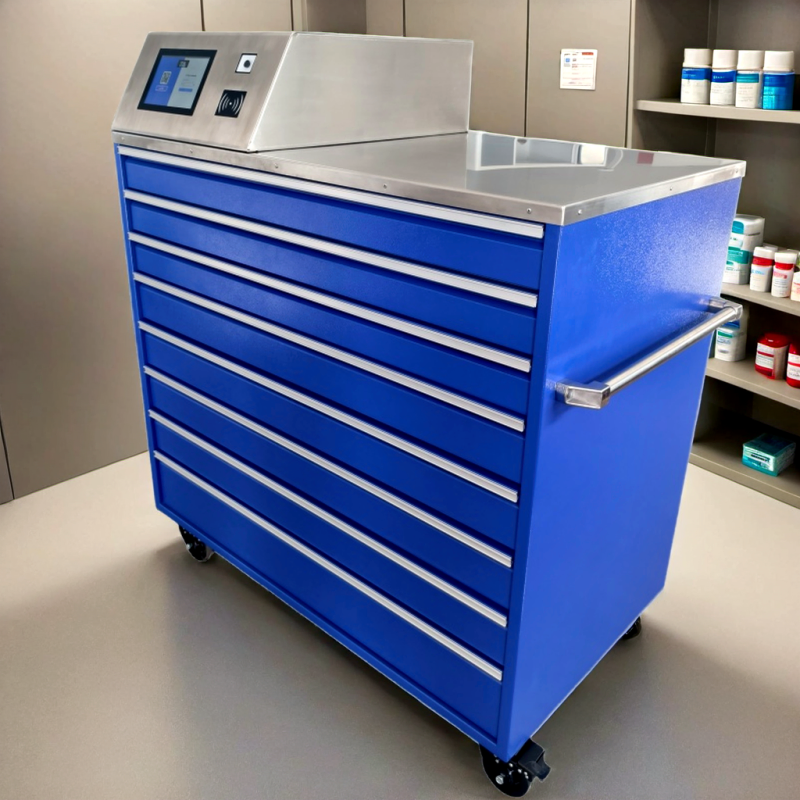

Intelligent Tool Storage Solution with RFID Tracking and Mobile Accessibility

Customization:	Available
Bearing Capacity:	Heavy
Usage:	Home, Workshop, School

Send Inquiry

Product Description

Basic Information

Model NO.: Intelligent tool vehicle

Wheeled: Yes

Material: Cold-Rolled Steel (Customizable)

System: Android Industrial PC + Cloud Platform

Inventory: RFID Automatic Check-in/out

Identification: Face Recognition, Fingerprint/Vein, IC Card

Power Supply: UPS Backup, >5h Standby

Dimensions: 800mm (W) × 600mm (D) × 1280mm (H)

✓

Product Description

The intelligent tool cabinet system consists of an intelligent tool cabinet, a server, a management terminal, an intelligent management software system and a network. System operators view the storage status of items in the intelligent tool cabinet through the intelligent storage and retrieval system management terminal, and deliver the tool warehouse to the corresponding intelligent tool cabinet according to the plan requirements. Users can take or borrow items from the intelligent tool cabinet after identity authentication.

⚙

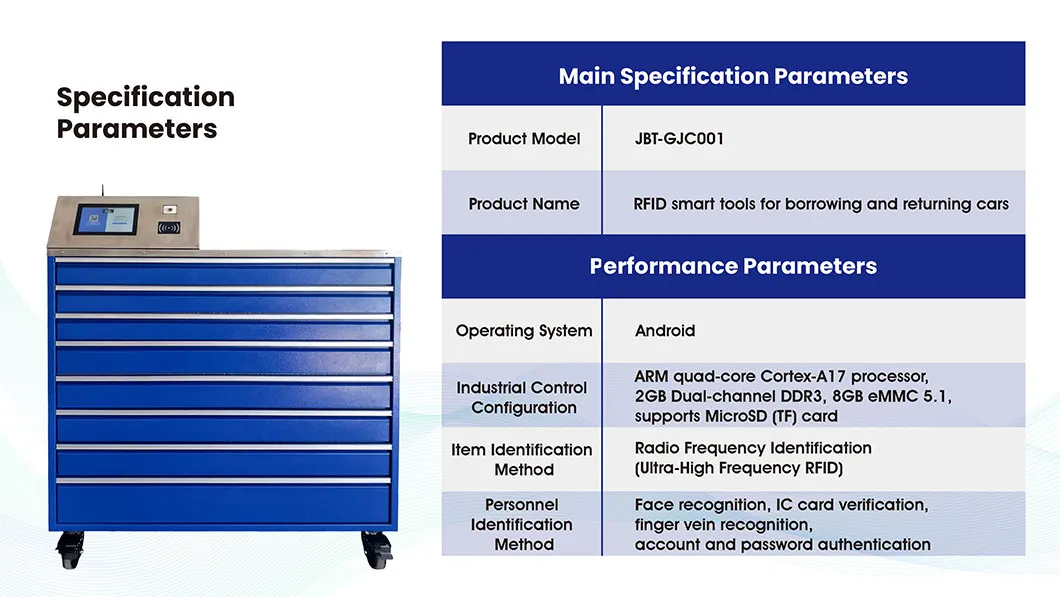

Technical Specifications

Main Specification Parameters
Product Name	RFID smart tools for borrowing and returning cars
Operating System	Android
Identification Method	UHF RFID (Ultra-High Frequency)
Personnel Access	Face recognition, IC card, finger vein, password

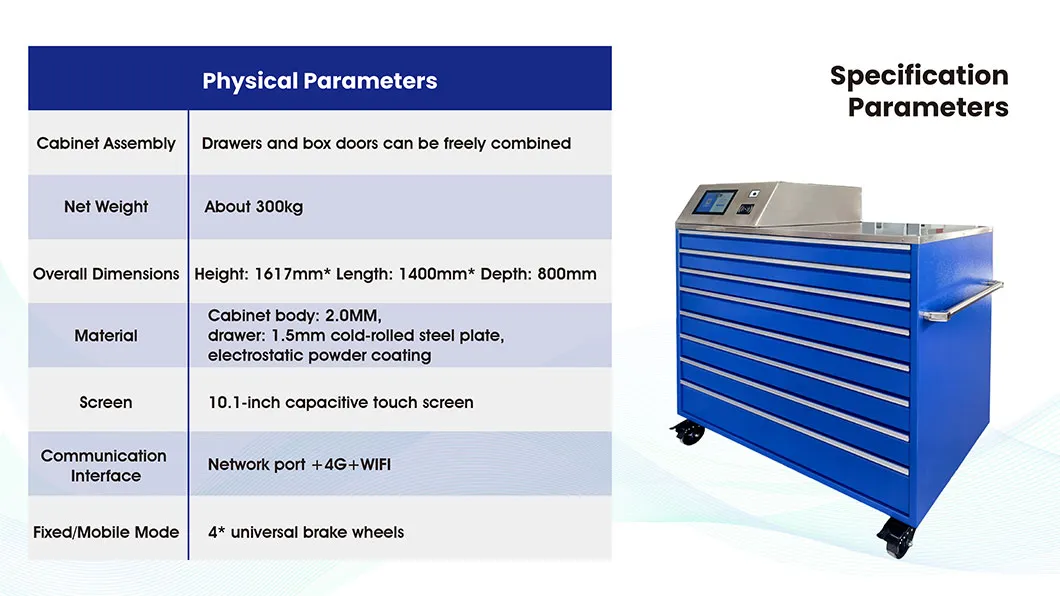

Physical & Hardware
Dimensions	H: 1617mm * L: 1400mm * D: 800mm
Net Weight	Approx. 300kg
Screen	10.1-inch capacitive touch screen
Communication	Network port + 4G + WIFI

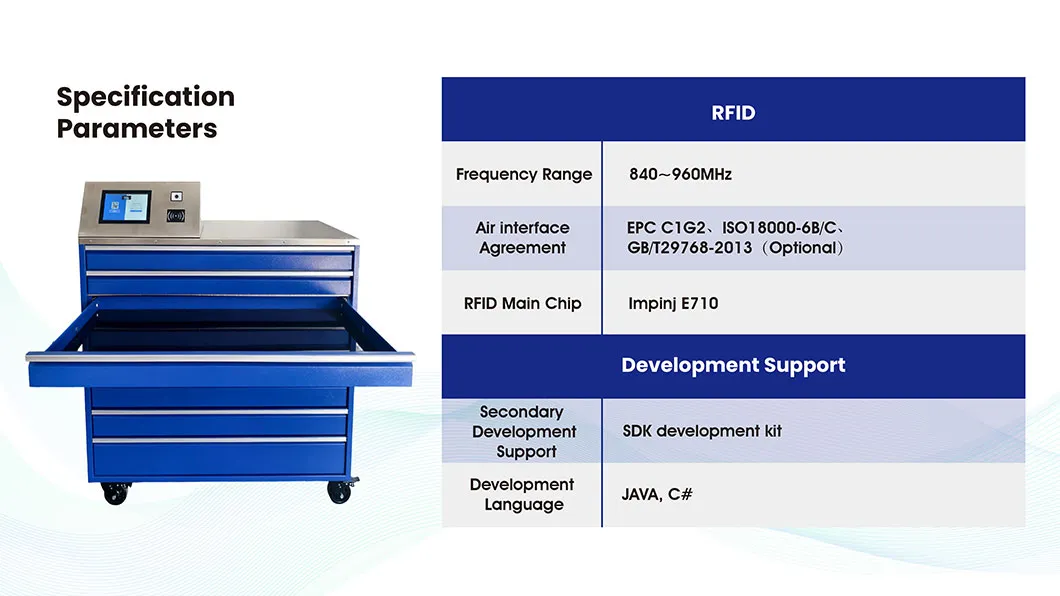

RFID & Power
RFID Main Chip	Impinj E710
Frequency Range	840~960MHz
Power Supply	AC220V (≤200W)
Working Temp	-10 to 60℃

Frequently Asked Questions

How does the tool tracking system work?

The system utilizes Ultra-High Frequency (UHF) RFID technology to automatically identify and track tools as they are borrowed or returned, ensuring real-time inventory accuracy.

What security methods are supported for user authentication?

Users can authenticate their identity through multiple secure methods including face recognition, finger vein identification, IC card verification, or standard account passwords.

Is the tool cart mobile and easy to move?

Yes, the intelligent tool vehicle is equipped with four universal brake wheels, allowing for easy mobility and secure positioning within a workspace.

What happens if there is a power outage?

The cart is equipped with a UPS backup system that provides over 5 hours of standby time and includes an emergency unlock function for critical access.

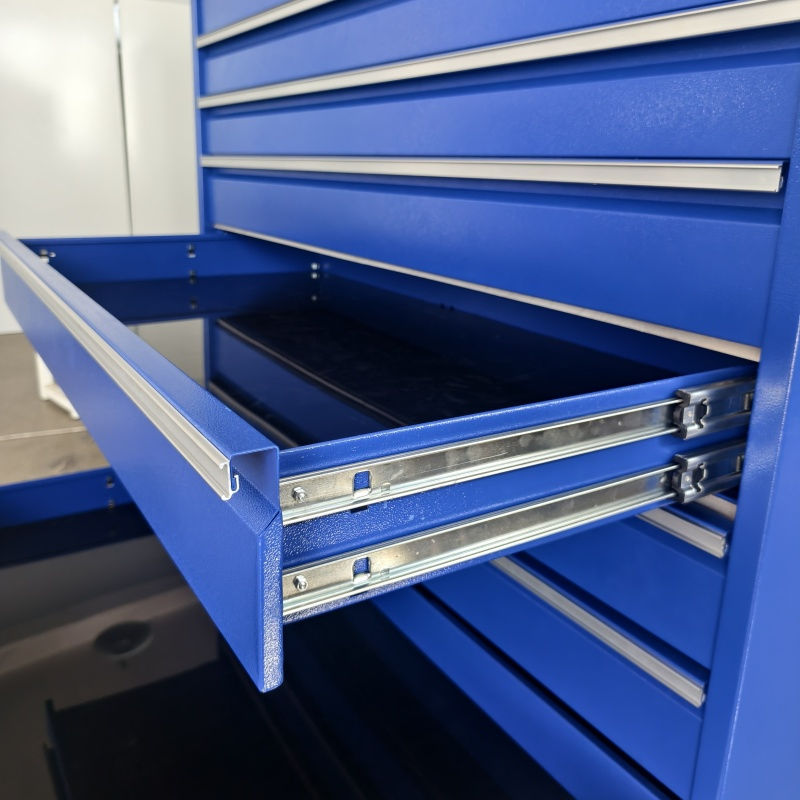

Can the internal drawer configuration be customized?

Yes, the cabinet assembly allows for drawers and box doors to be freely combined to meet specific tool storage requirements.

What materials is the cabinet made of?

The cabinet body is constructed from 2.0mm cold-rolled steel plate, while the drawers use 1.5mm steel, all finished with a durable electrostatic powder coating.
