Modular Adjustable Flexible Fill System Equipment

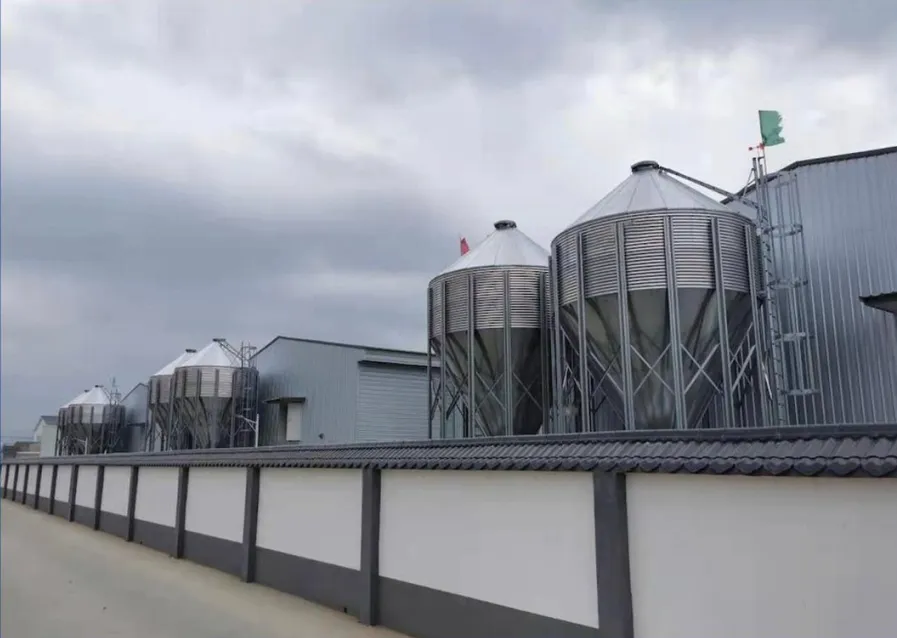

We provide a complete production line for feed storage silo manufacturing. All parts are strictly programmed automatically by advanced machinery. Every operator is well-trained to ensure product quality. Our silo capacity range is from 2.5 tons to 45 tons, meeting the diverse needs of poultry and livestock farms. The designs consider all poultry farm usage conditions, utilizing 275g Galvanized/Zn-Al-Mg materials per square meter to maximize service life.
Silo Features:
| Model | Tons | Weight (KG) | Diameter (MM) | Height (M) |
|---|---|---|---|---|
| HH-183001 | 2.8 | 320 | 1830 | 4.1 |
| HH-183002 | 4.3 | 375 | 1830 | 5 |
| HH-183003 | 6.0 | 430 | 1830 | 5.9 |
| HH-275001 | 7.7 | 555 | 2750 | 4.7 |
| HH-275002 | 11.2 | 630 | 2750 | 5.6 |
| HH-275003 | 14.3 | 710 | 2750 | 6.5 |
| HH-366004 | 34.6 | 1390 | 3660 | 8.4 |

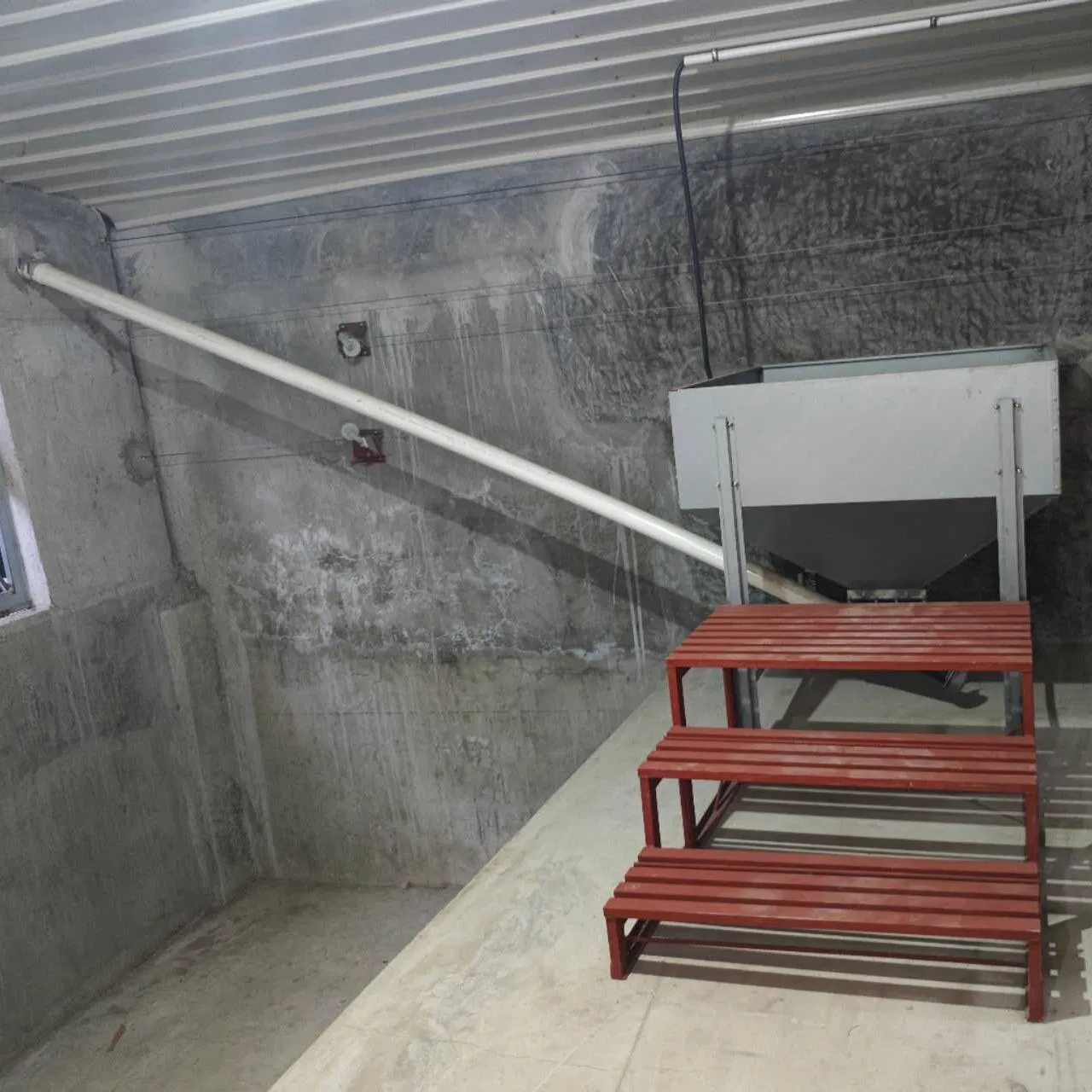

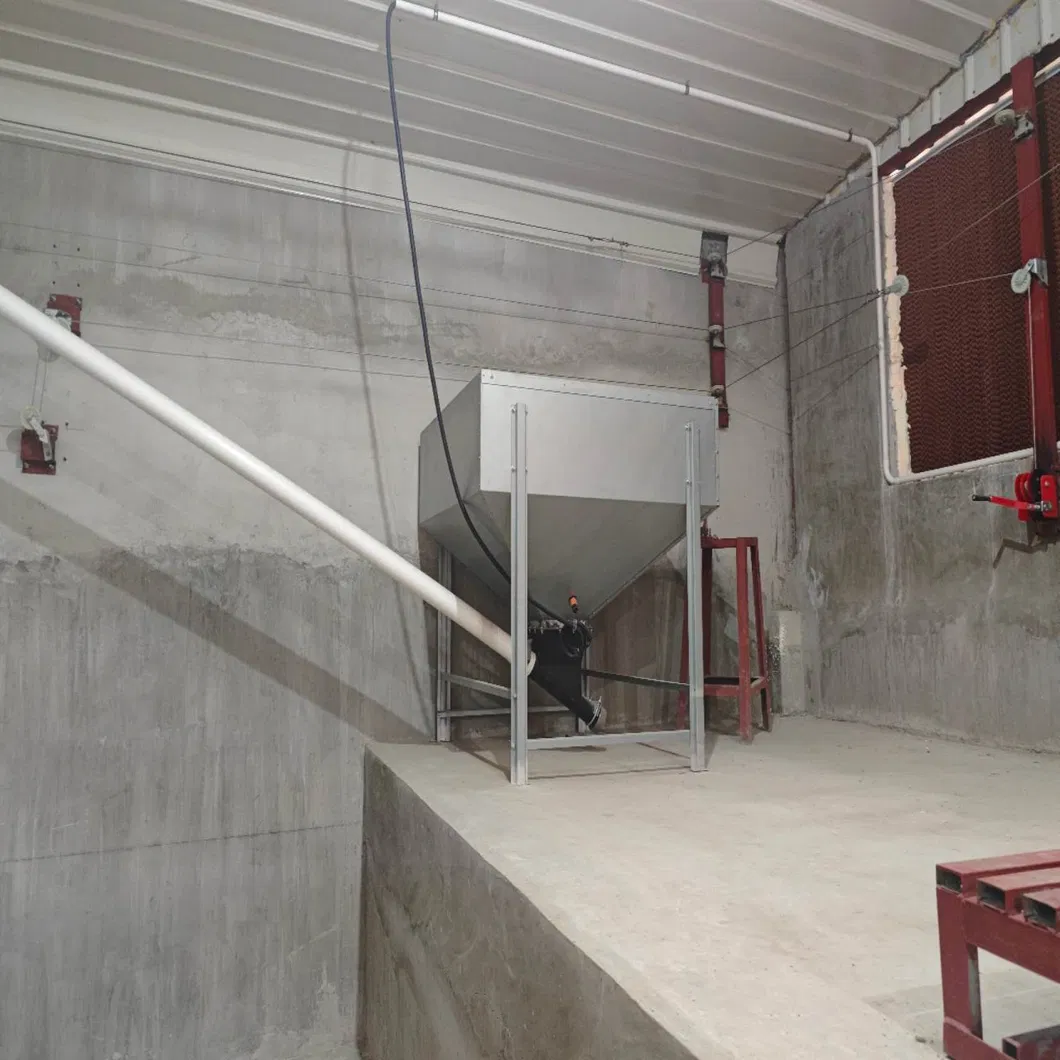

The hopper is made of high-quality galvanized steel, ensuring durability and a long service life without rust. Integrated with an automatic feeding line, it delivers feed evenly and efficiently, minimizing waste and maximizing farm productivity.
Hopper Features:
| Specification | CBM | Weight (KG) |
|---|---|---|
| 600kg | 0.26 | 81 |
| 350KG | 0.10 | 69.25 |
| 280KG | 1.20 | 40.96 |
| 150KG | 0.3 | 30 |
| 90KG | 0.27 | 13.5 |

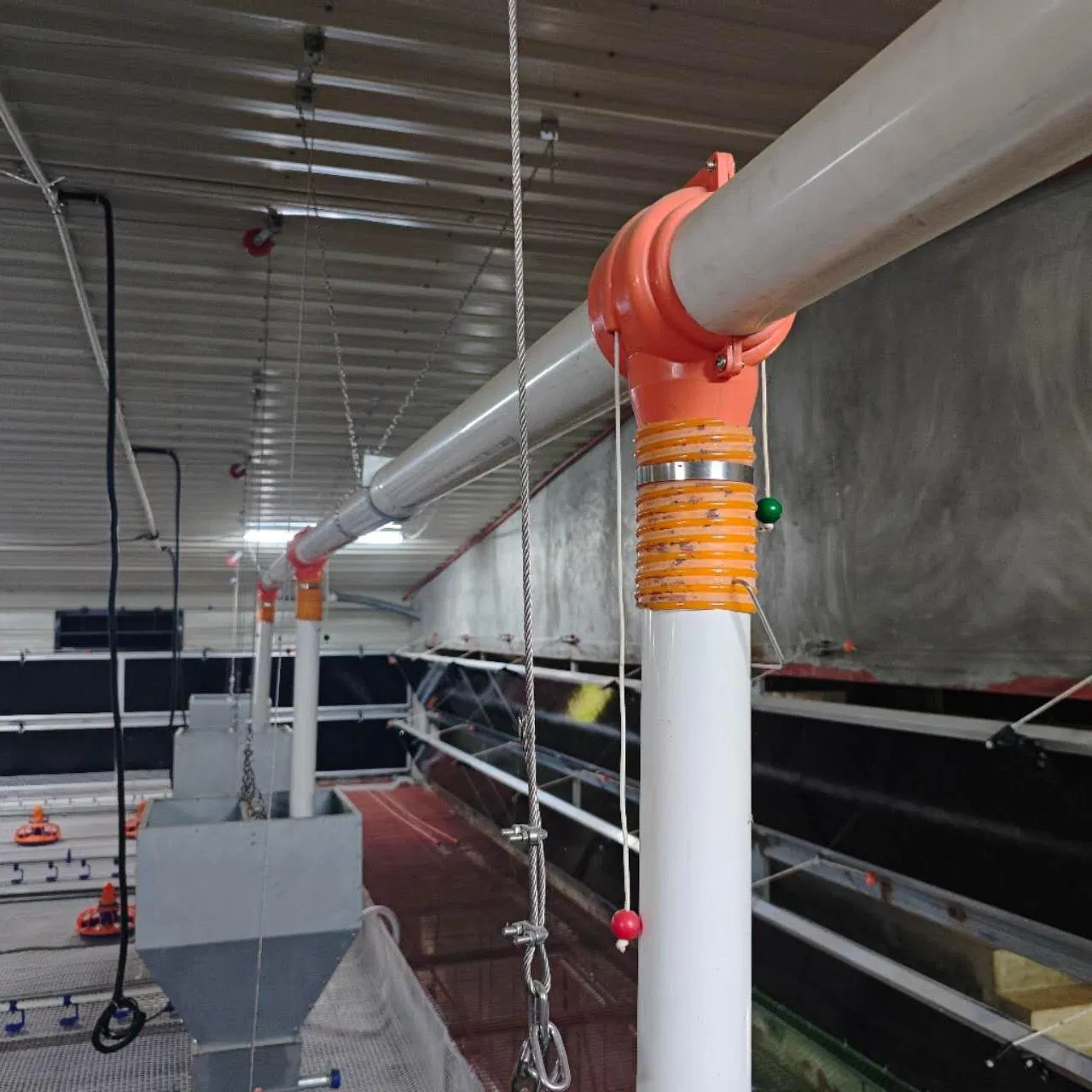

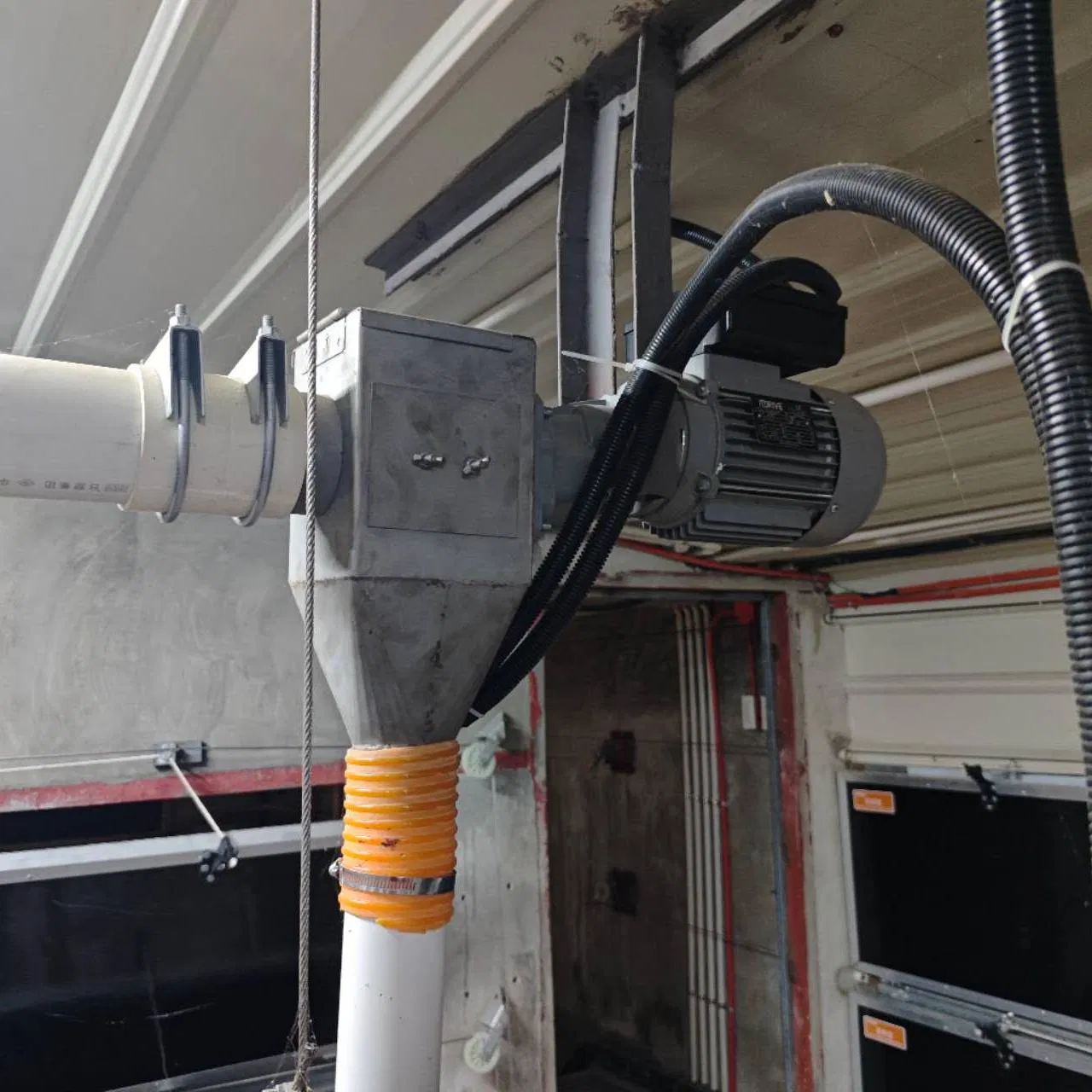

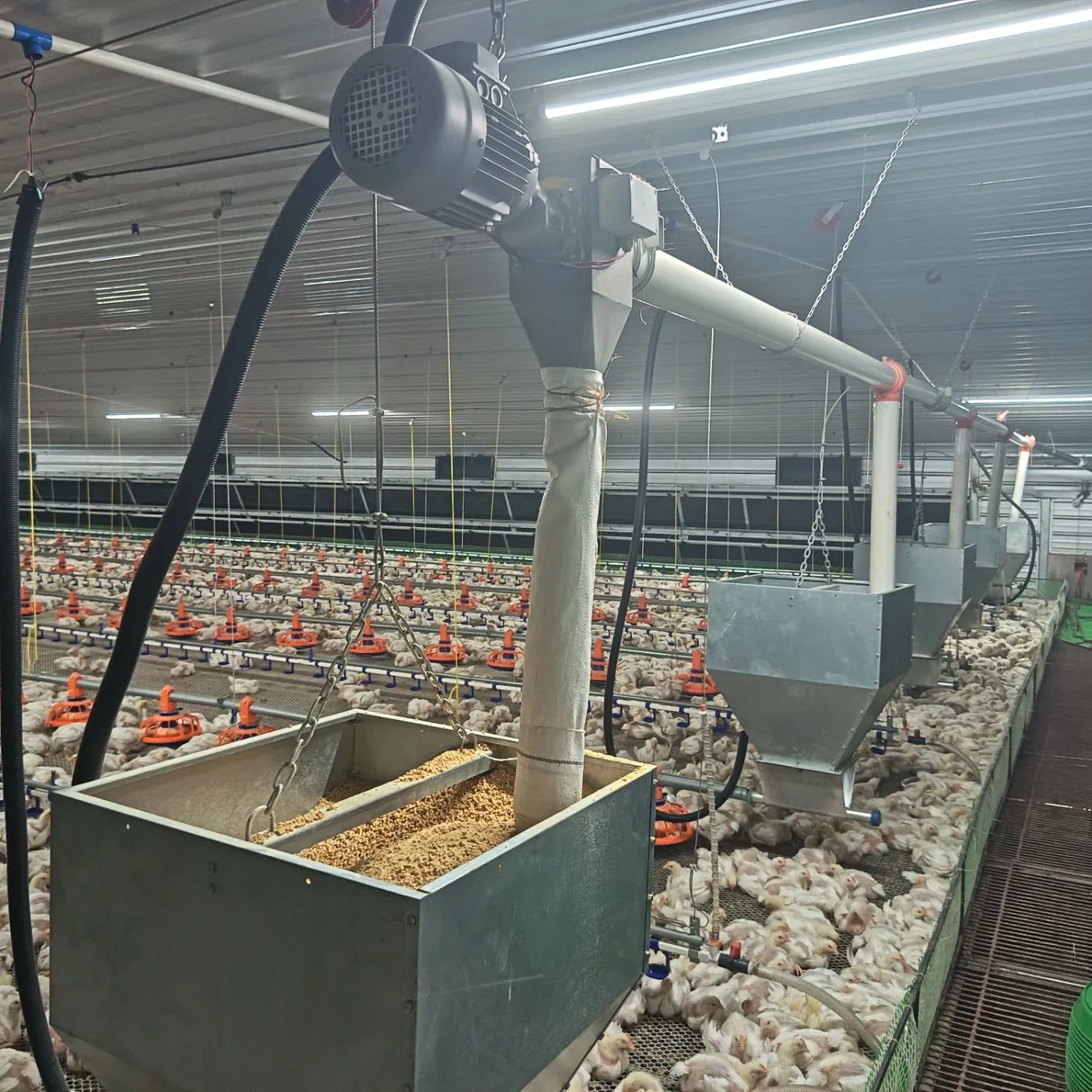

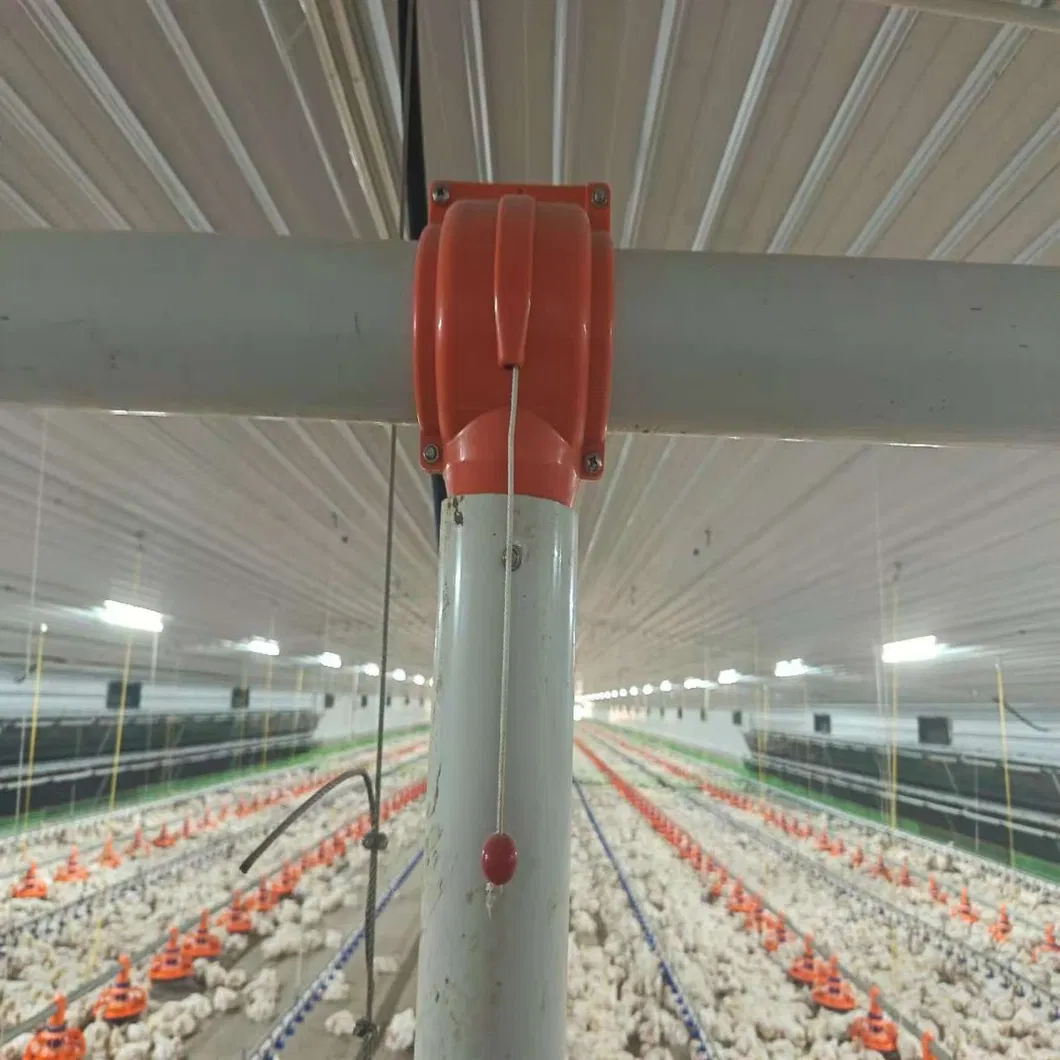

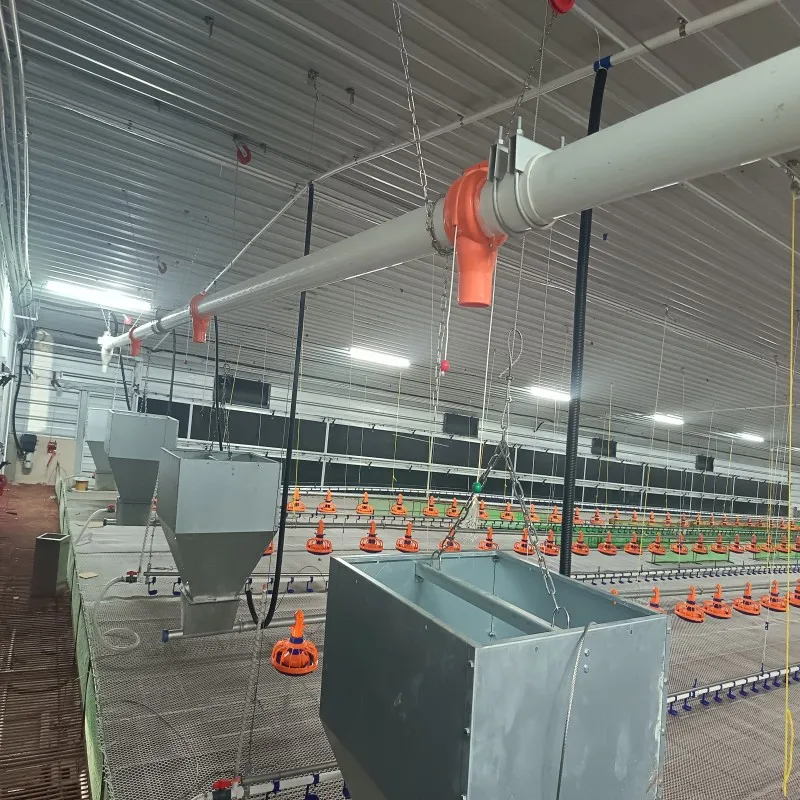

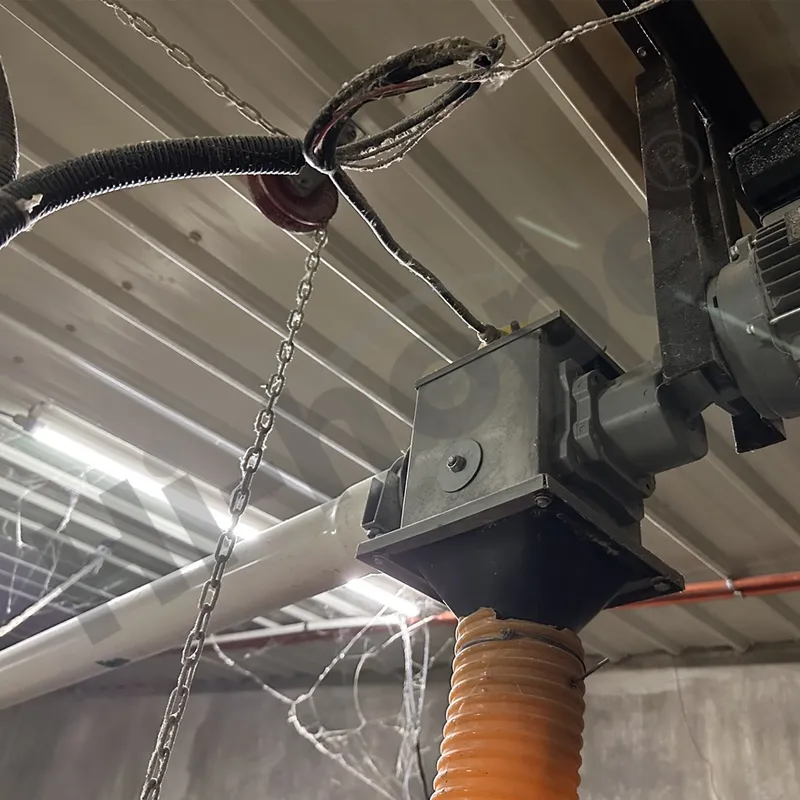

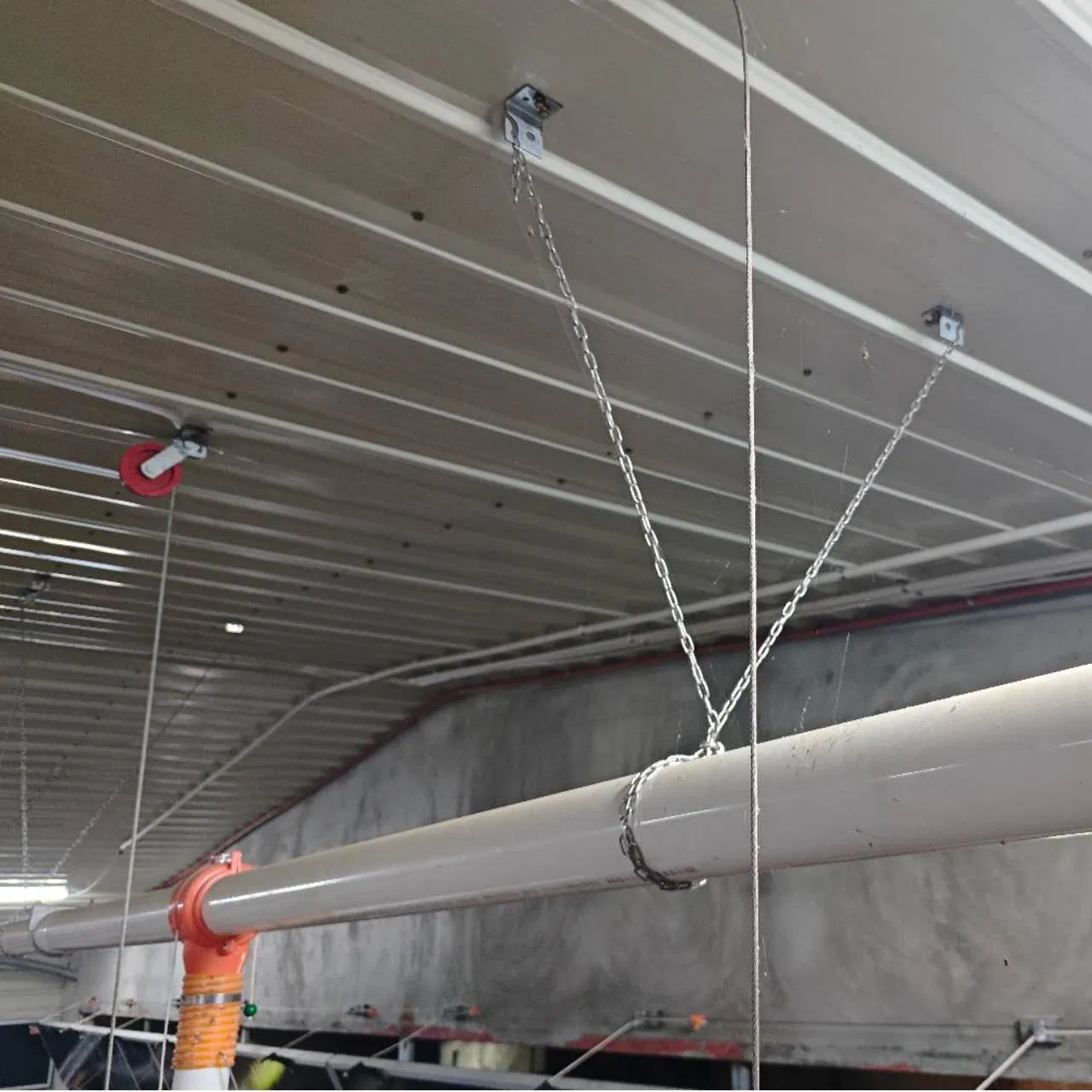

The feed delivery line adopts a 90 mm screw auger conveyor, offering high conveying efficiency with a capacity of up to 2,500 kg per hour. This ensures a fast and stable feed supply for intensive livestock operations.
All products are packed with export standard packages, suitable for long-distance ocean transportation to ensure safety upon arrival.
