Strapping Machines bundle the packages with PP / PET strap to prevent them from falling apart in transit. We offer a range of strapping machines from semi-automatic models through to fully automatic inline models, fully customized to meet the various requirements of customers.

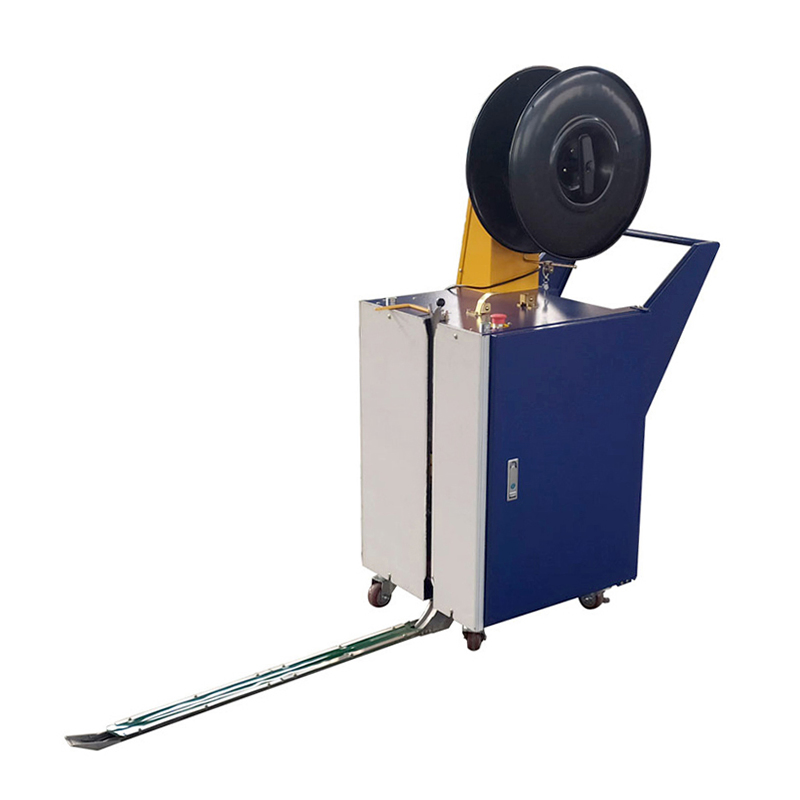

Portable and easy to move from pallet to pallet, this semi-automatic pallet strapper is a quick, ergonomic, and economical solution for low-volume pallet vertical strapping applications.
| Parameter | Details |
|---|---|
| Sword Length | Std. 1000 mm |
| Sword Height | 80 mm |
| Strapping Height Min. | 550 mm |
| Tension | 0 - 70 kg, Adjustable |
| Strap Width | 9 - 16 mm (PP Strap) |
| Strap Thickness | 0.5 - 1.0 mm |
| Noise Level | ≤ 79 dB(A) |
| Machine Weight | 150 kg |
| Machine Size (Folded) | L 857 mm × W 562 mm × H 1523 mm |

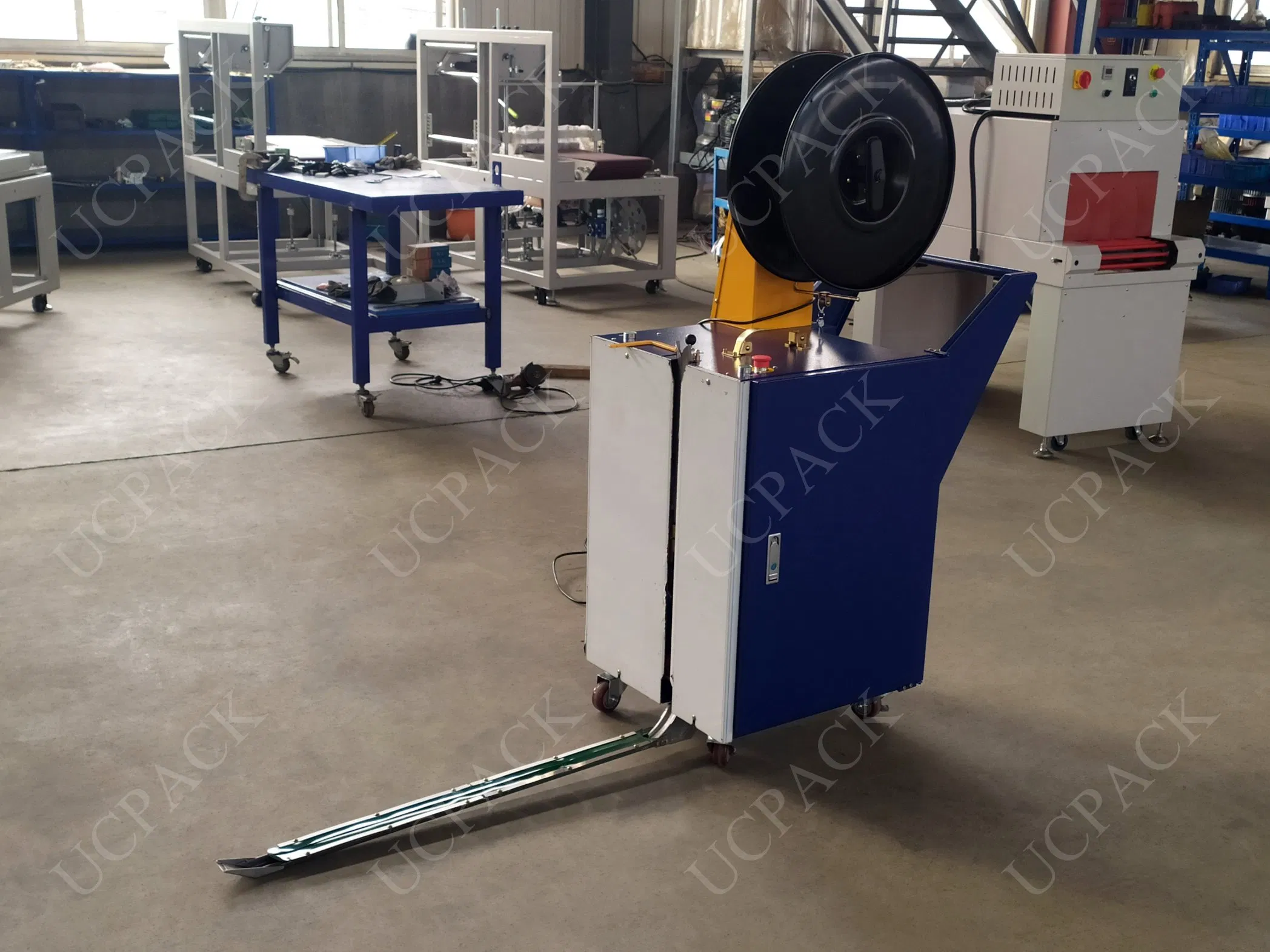

Simply roll the pallet strapper and insert the sword through the pallet, manually place strap around the package, then insert its end into strap inlet to activate the strapping cycle. The machine auto-feeds a pre-set length of strap for the next cycle.

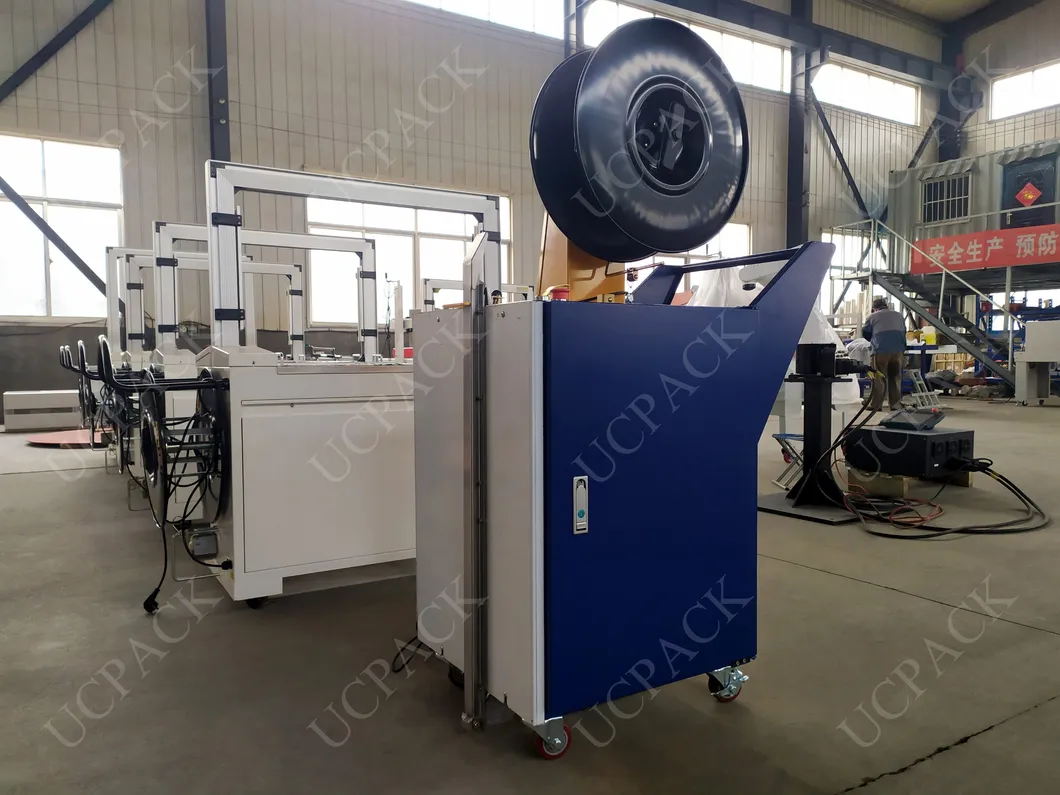

Compatible with 9 - 15 mm width PP strap at a speed of ≤ 2.5 seconds per strip. Features an external strap roll holder and 220 VAC single-phase power supply.

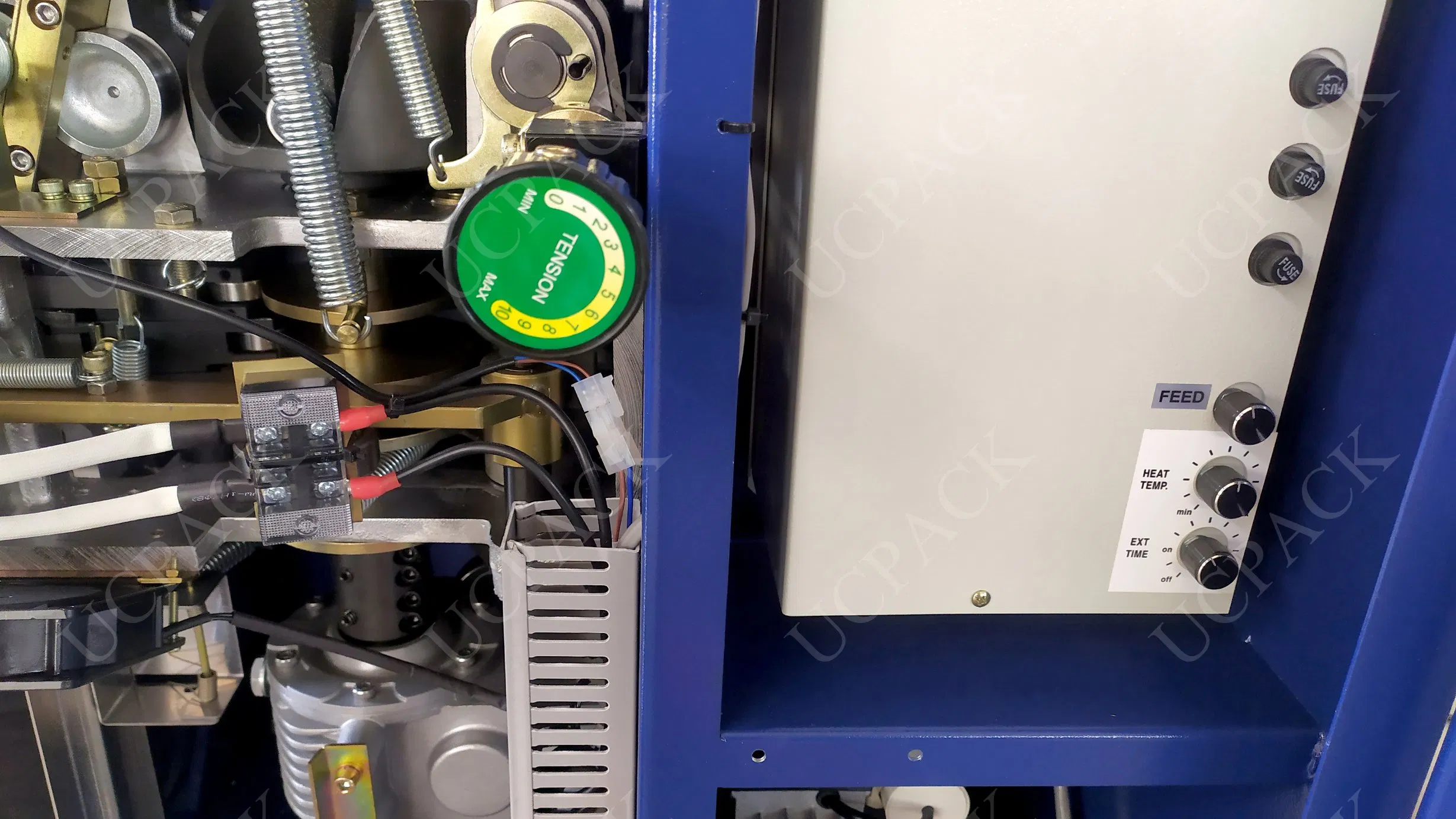

Mechanical tension (0 - 70 kg), heating temperature, and cooling time can all be adjusted to suit different packaging requirements.

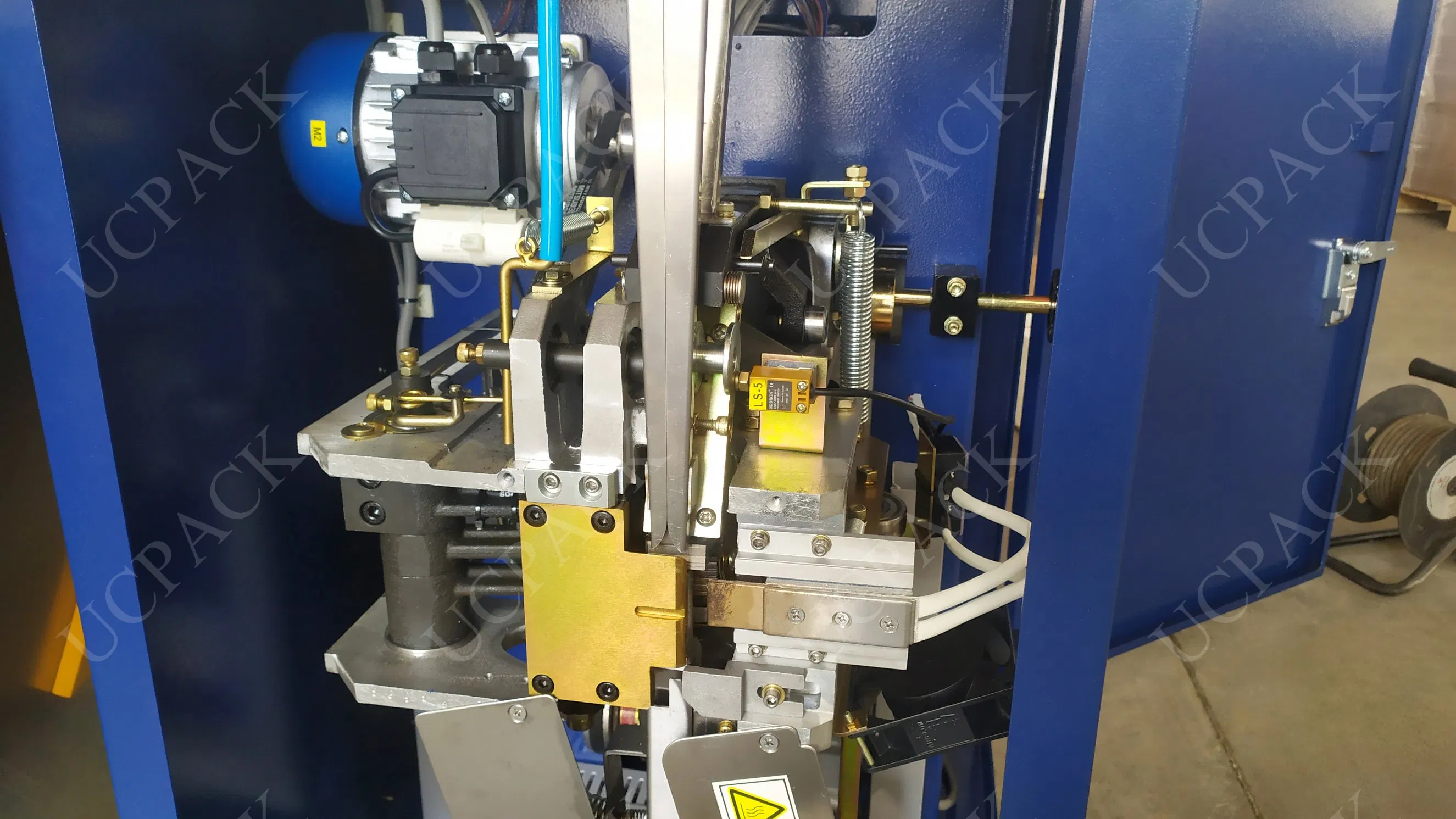

Heating Head & Sealing Bars

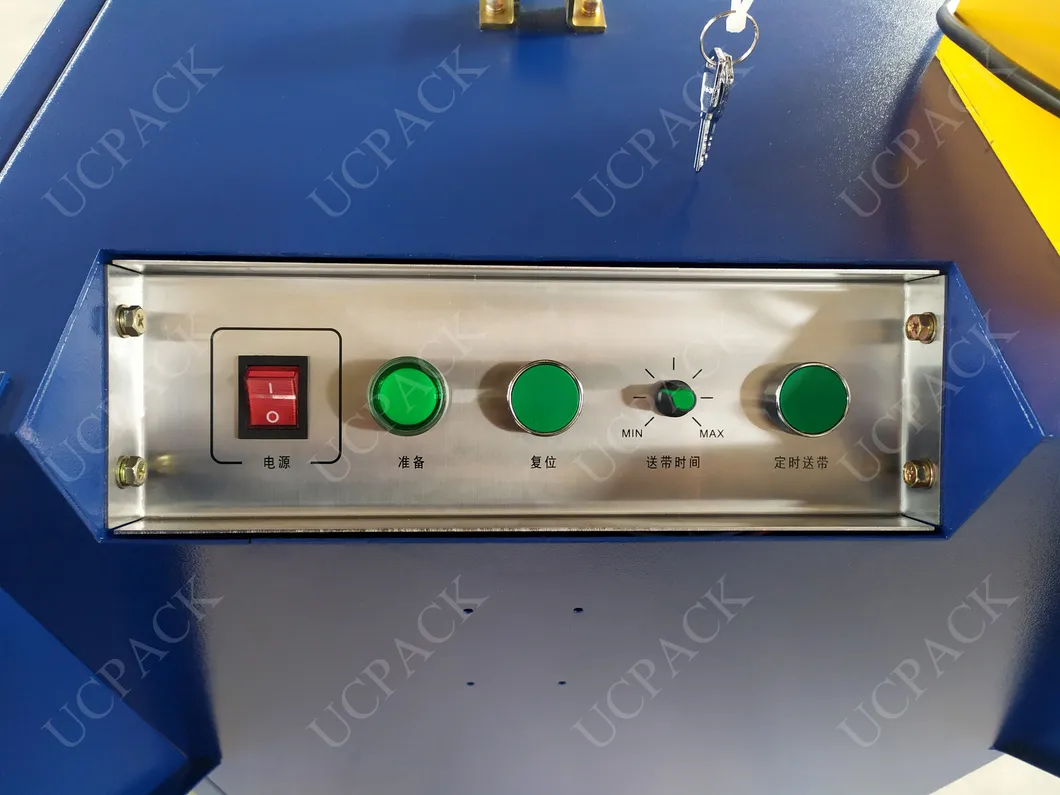

Intuitive Control Panel

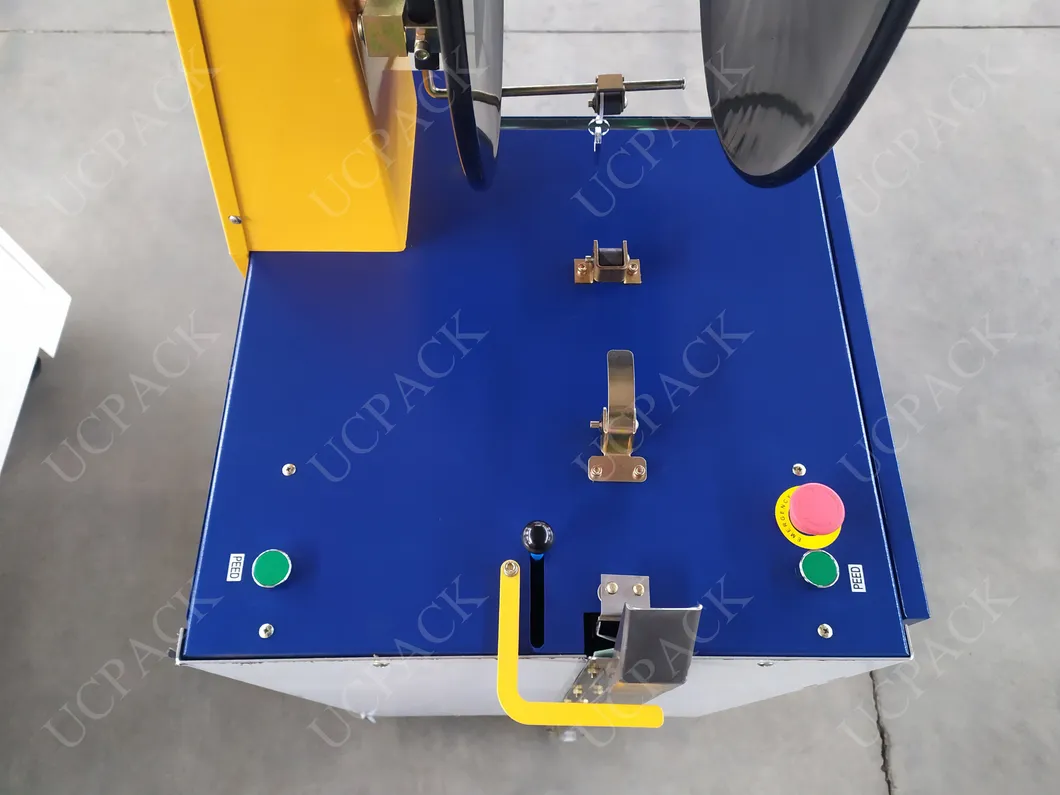

Convenient Operation Buttons
Available Options:
