Product Description

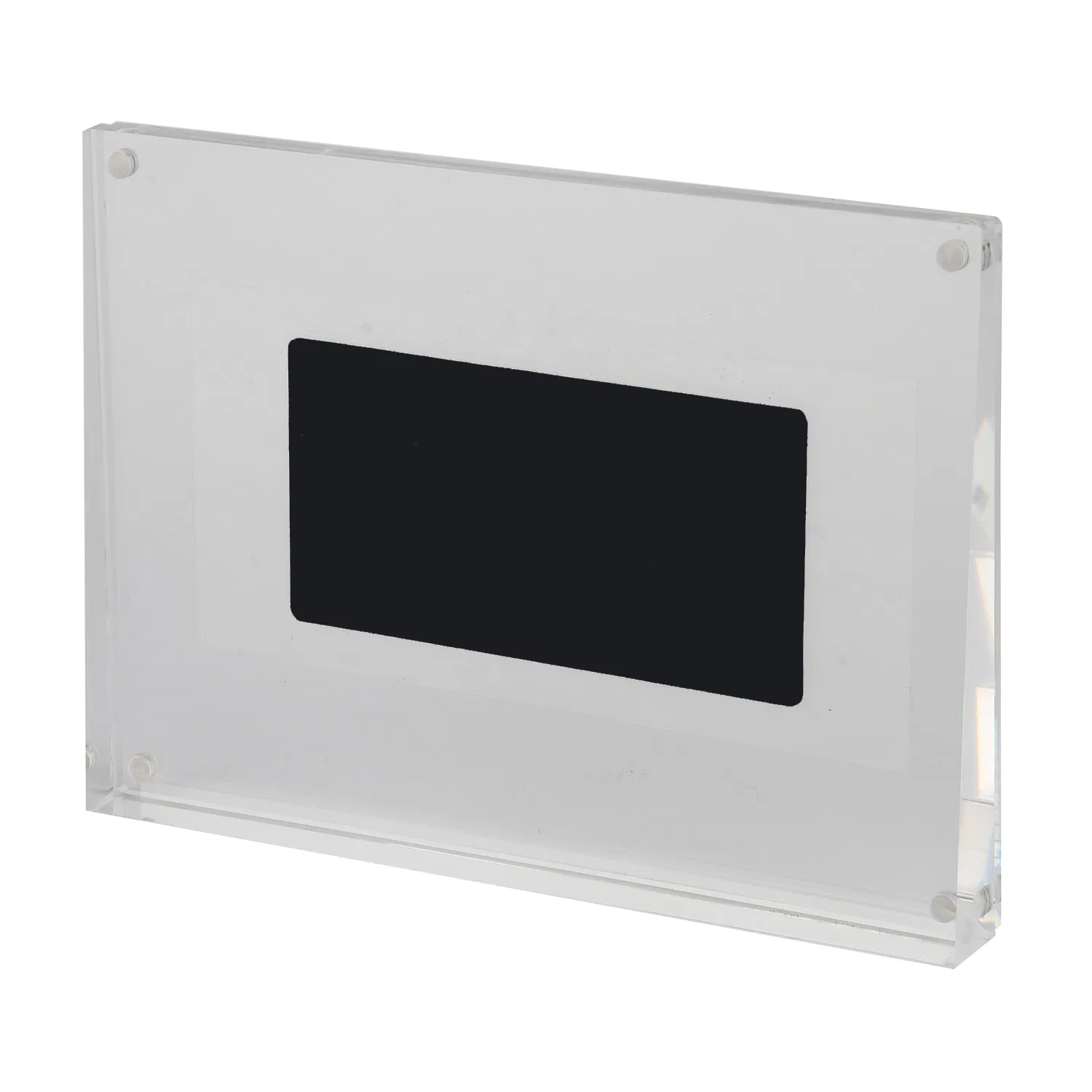

Customizable 7-in-1 Air-Cooled MEA

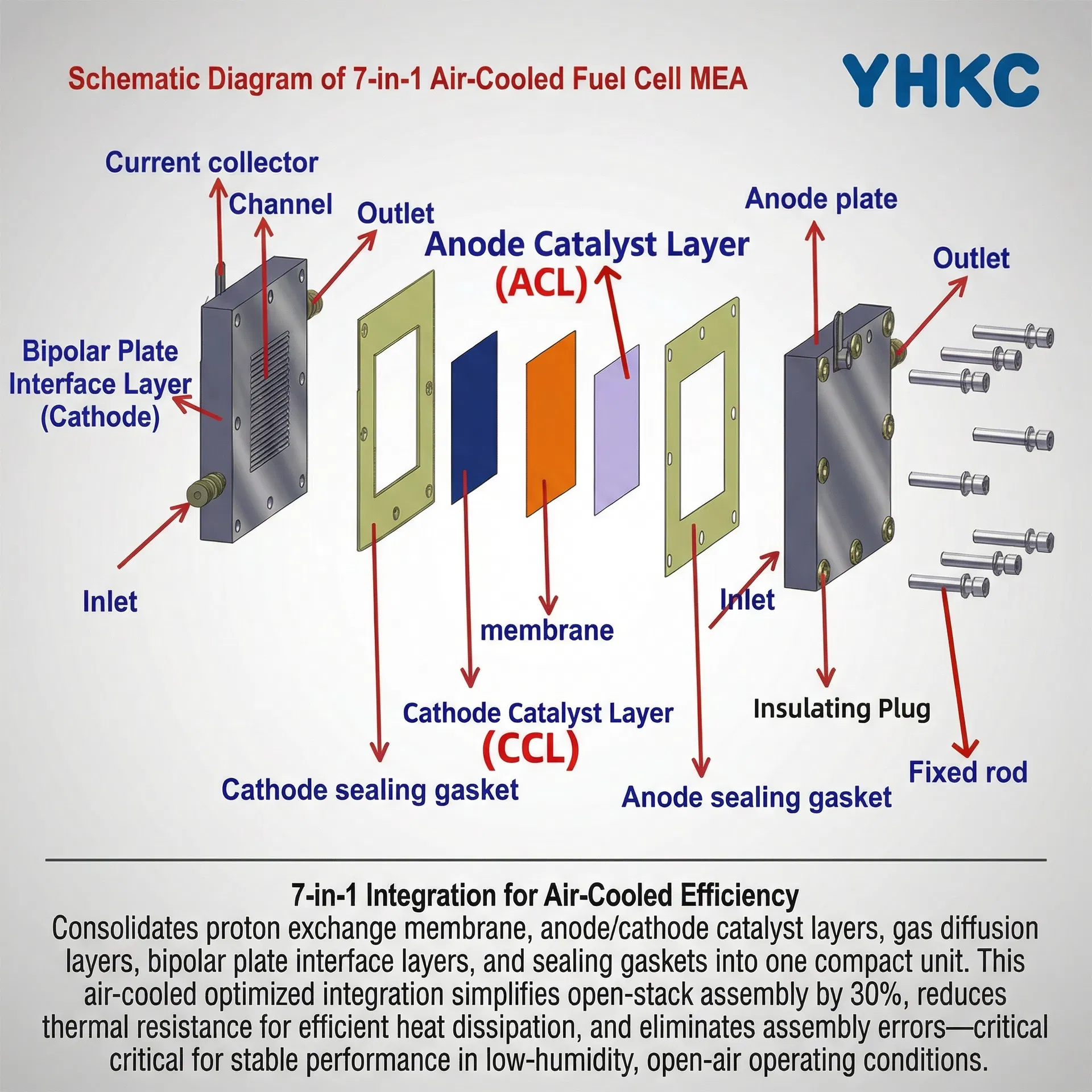

The 7-in-1 Customizable Air-Cooled Fuel Cell Membrane Electrode Assembly (MEA) is specifically optimized for open-stack, low-humidity operating environments. As the high-performance core of air-cooled PEM fuel cell systems, it integrates the proton exchange membrane, anode/cathode catalyst layers, gas diffusion layers, bipolar plate interface layers, and sealing gaskets into a single compact unit. This design ensures exceptional power density, ultra-high stability, and strong customization flexibility.

Key Features & Technical Advantages

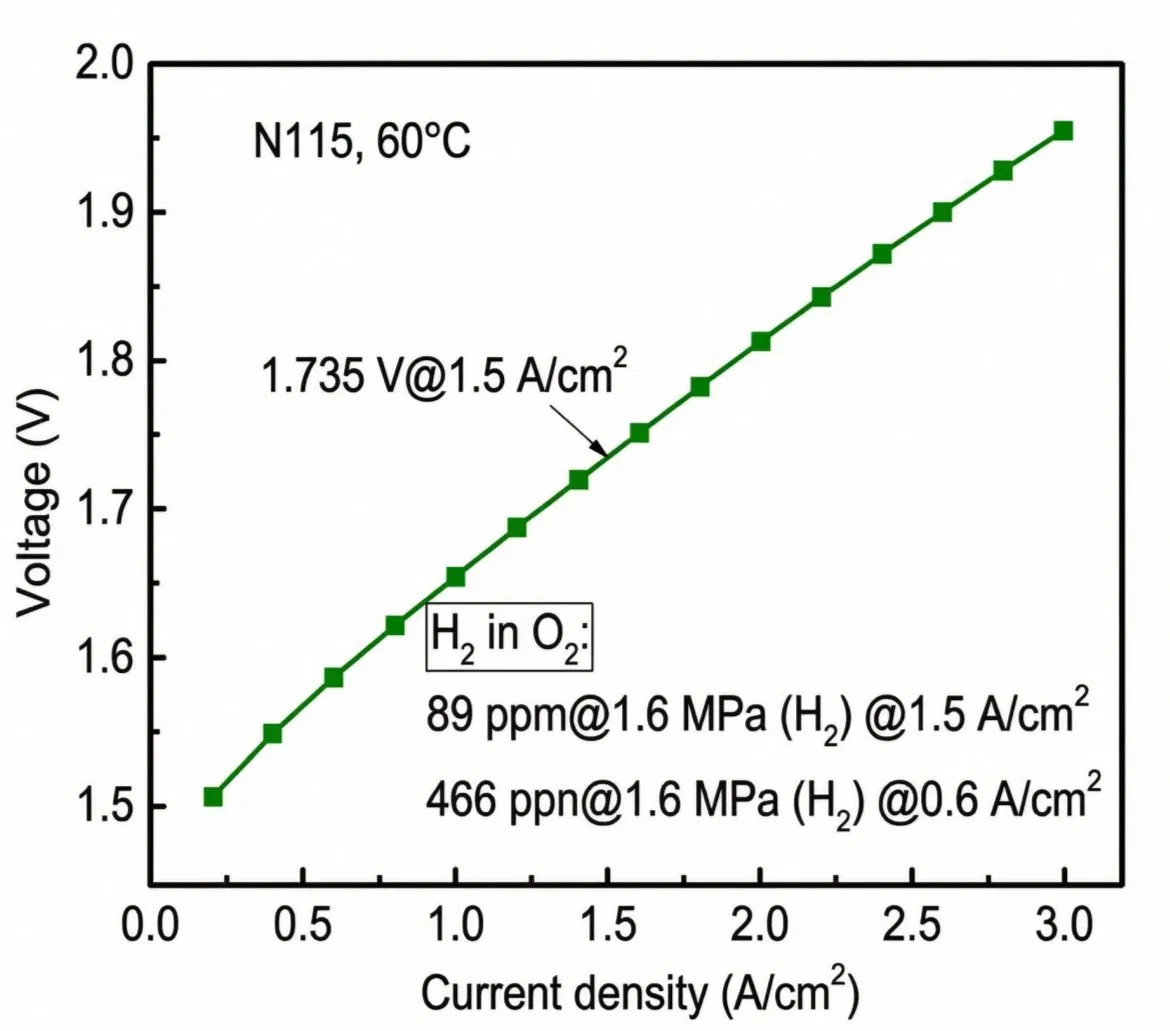

High Electrochemical Performance: Peak power density of 1.735 V @ 1.5 A/cm² with ultra-low internal resistance.

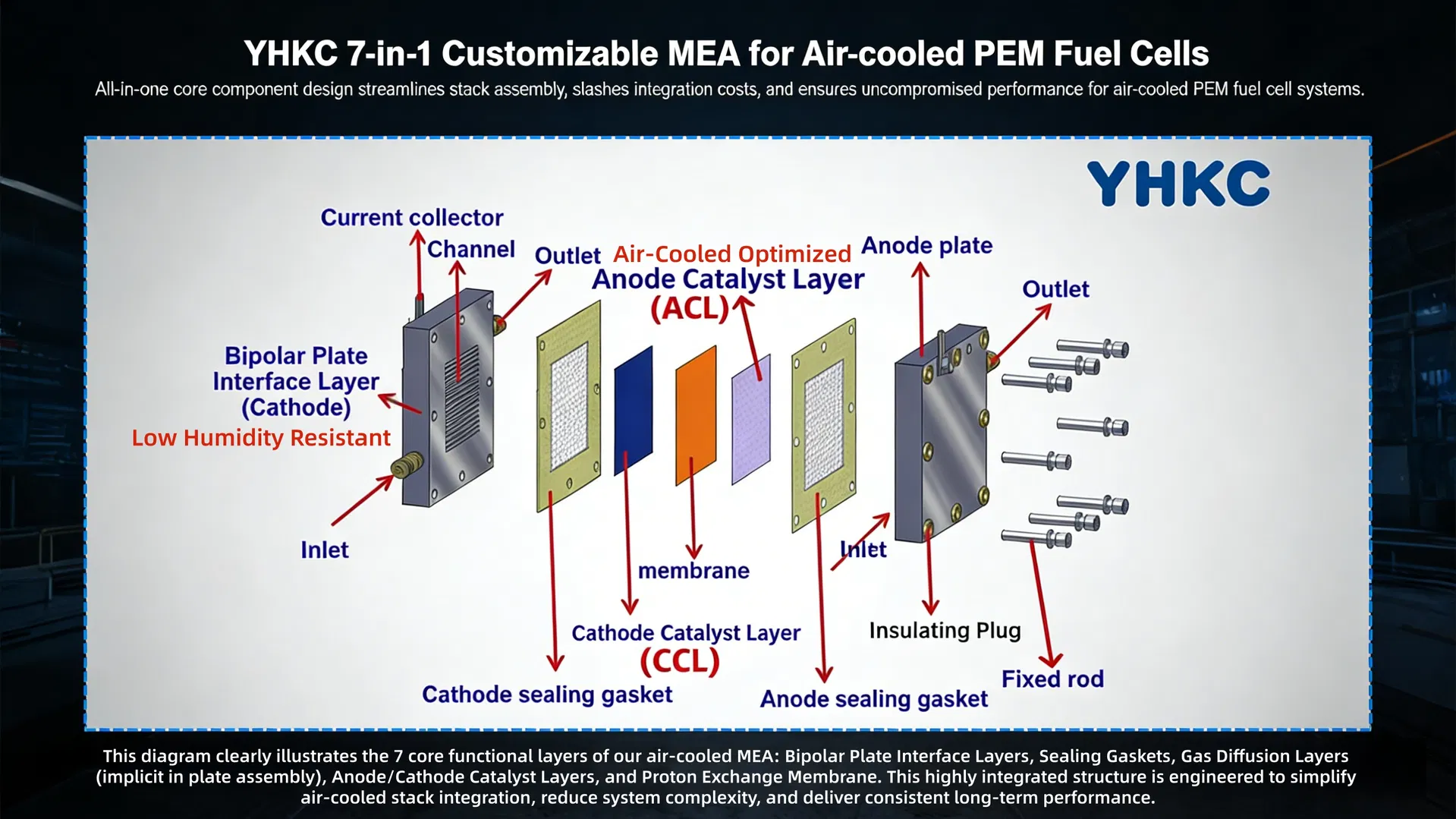

7-in-1 Integrated Structure: Minimizes contact resistance and eliminates assembly errors for air-cooled stacks.

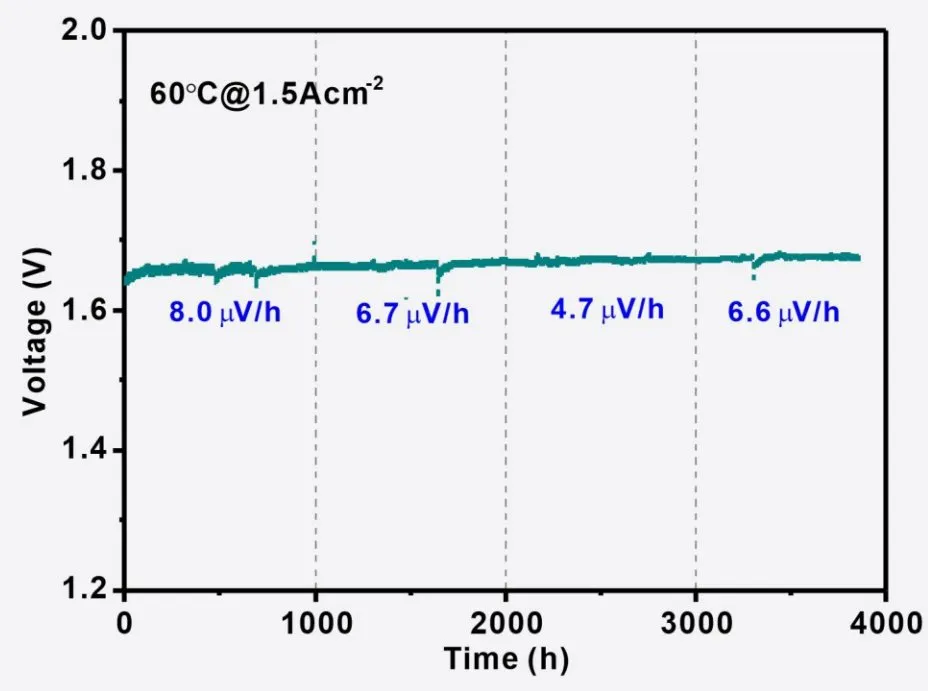

Exceptional Durability: Average single-cell voltage decay rate of 6.6 μV/h after 3000 hours of operation.

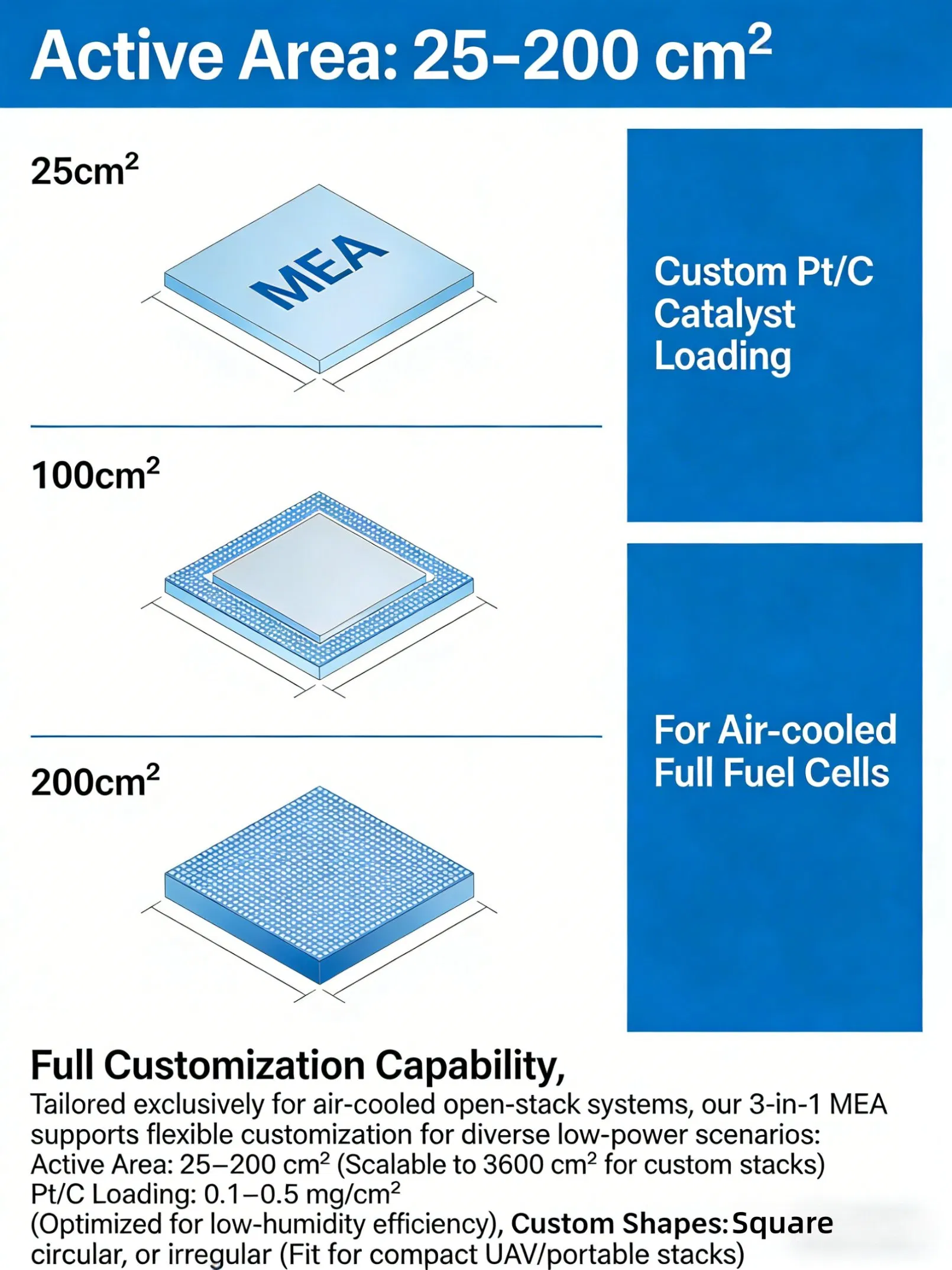

Full Customization: Supports active areas from 25–200 cm² and tailored catalyst loadings.

Technical Specifications

Parameter	Specification
Product Name	7-in-1 Customizable Air-Cooled Fuel Cell MEA
Active Area	25 – 200 cm² (scalable to 3600 cm²)
Membrane Type	Nafion® series or Customizable
Catalyst Material	Pt/C (HiCaP40) or Customizable
Catalyst Loading	0.1 – 0.5 mg/cm²
Operating Temp	60°C – 80°C (optimized for open-stack)
Operating Pressure	Ambient to 0.2 MPa
Service Life	> 15,000 hours @ 1.5 A/cm²
Power Density	> 1.0 W/cm² @ 0.65 V

Performance Stability & Production

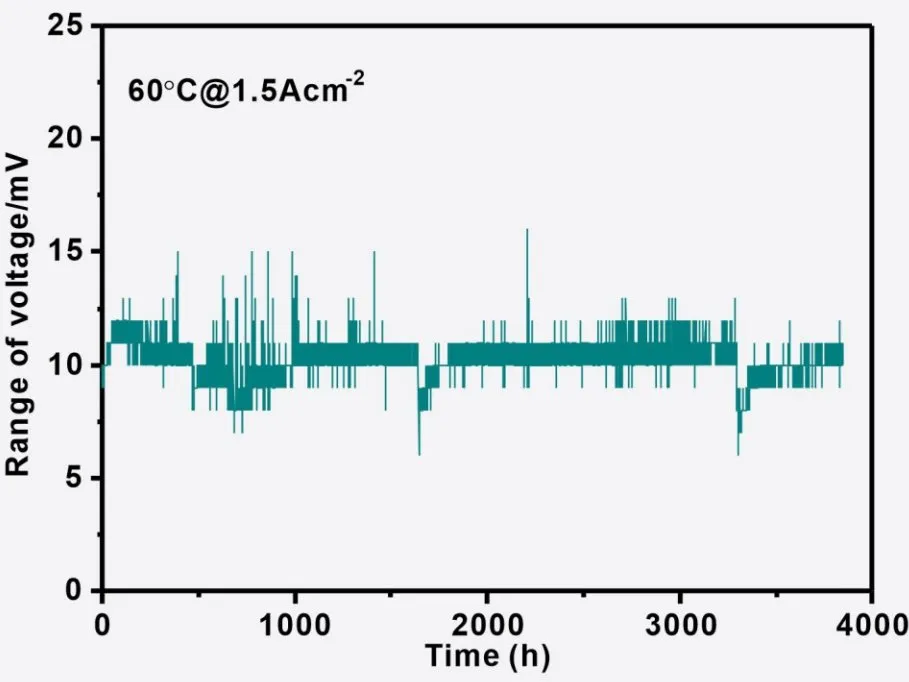

Rigorous quality control ensures exceptional stability. Testing on a 10-cell air-cooled stack showed a voltage range of only 10 mV after 3847 hours, delivering consistent performance for UAV and industrial applications.

Versatile Applications

Optimized for various air-cooled PEM fuel cell scenarios:

Aerospace & UAV: Commercial inspection drones and long-endurance flight systems.
Industrial Mobility: Forklifts, AGVs, and autonomous delivery robots.
Portable Power: Outdoor energy stations and emergency rescue power supplies.

Product Showcase

Frequently Asked Questions

What is the advantage of the 7-in-1 integrated structure?

The 7-in-1 design consolidates all critical functional layers into one unit, simplifying stack assembly by 30%, reducing thermal resistance, and ensuring ultra-stable performance in low-humidity, open-air conditions.

Can I customize the active area for my specific drone project?

Yes, we support customizable active areas ranging from 25 cm² to 200 cm², and even up to 3600 cm² for larger industrial stacks.

What kind of catalysts are used in this MEA?

We use high-purity Pt/C catalysts (standard 40 wt.%) optimized for air-cooled operations. Catalyst loading can be tailored between 0.1 and 0.5 mg/cm² based on your requirements.

What is the expected lifespan of the MEA?

Under standard operating conditions, the MEA offers a service life exceeding 15,000 hours, with an exceptionally low decay rate.

Is it suitable for high-altitude UAV operations?

Yes, it is designed for ambient to 0.2 MPa operating pressures and optimized for open-stack air-cooling, making it ideal for the thermal and humidity challenges of aerospace applications.
