Reliable Fsl300 Crawler Rig: Your Ultimate Water Well Solution

Customization:	Available
After-sales Service:	Online Support, on-Site Maintenance
Warranty:	Online Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

FSL300

Certification

CE, RoHS, ISO 9001:2000, ISO 9001:2008

Condition

New

Motor

AC Motor

Drill Hole Diameter

140-350 mm

Drill Hole Depth

300 m

Bit Type

Diamond Bit

Drilling Way

Compound

Type

Crawler

Advancement Length

3.3m

Driving Speed

2.5km/H

Engine Power

85kw

Engine Brand

Yuchai

Swing Torque

5700-7500N.M

Weight

6.5t

Lifting Force

18t

🏗️ Product Description

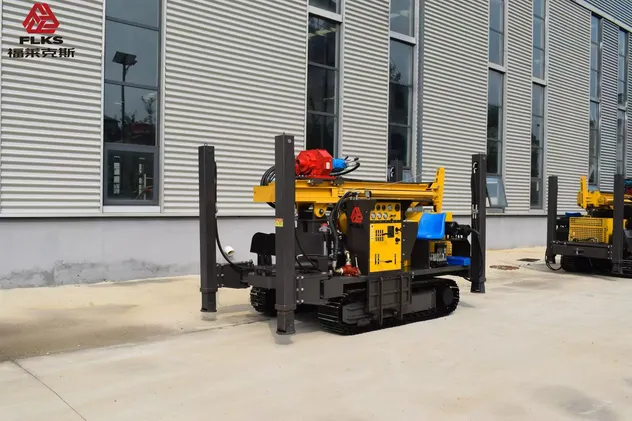

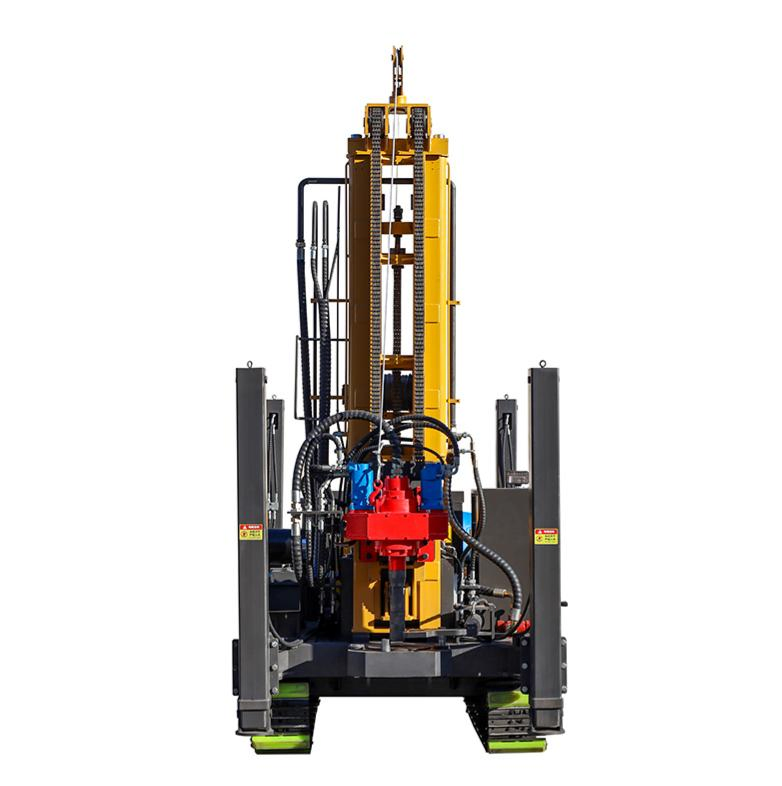

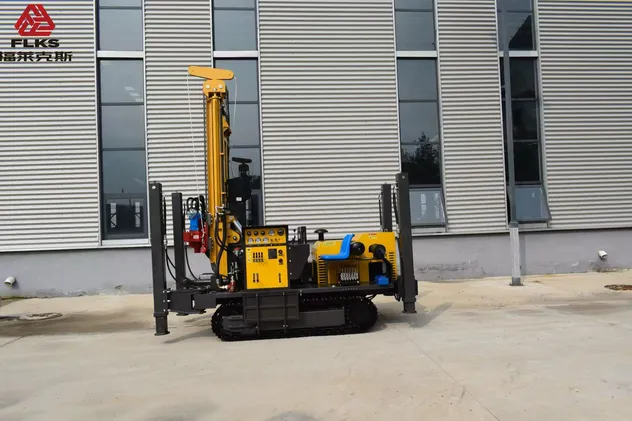

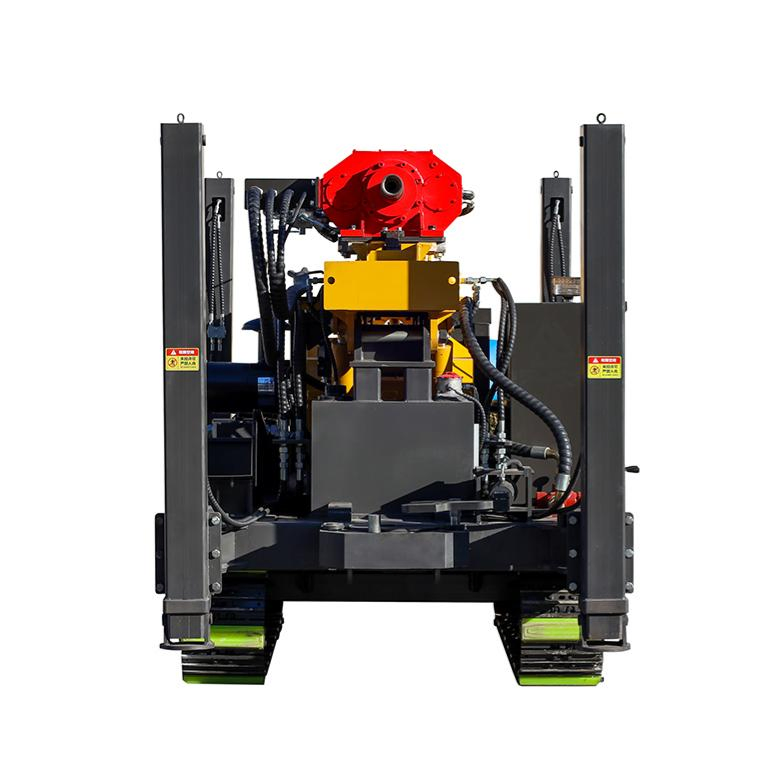

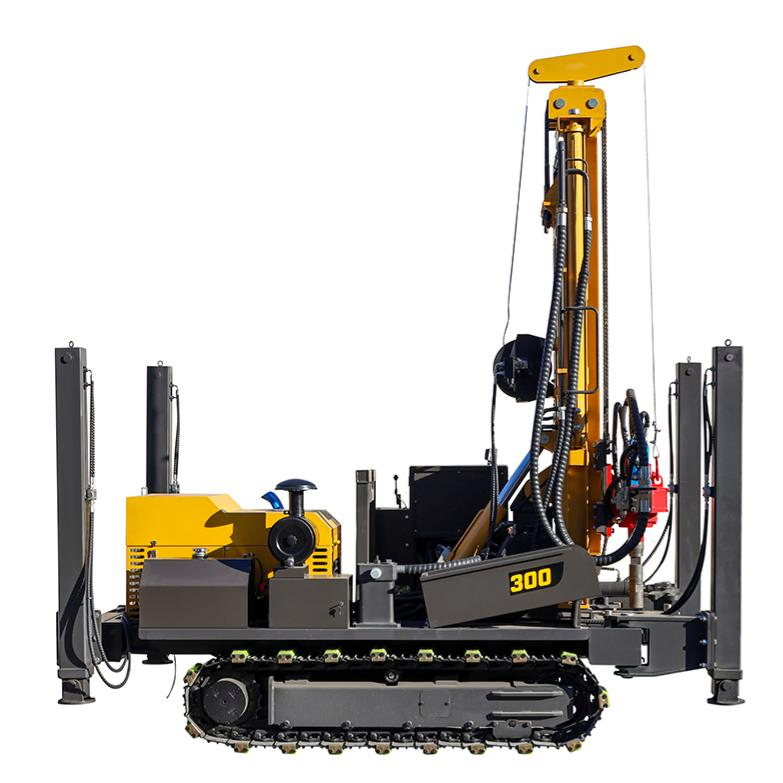

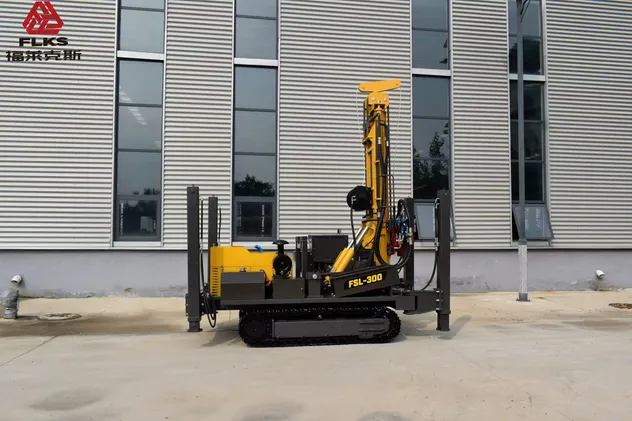

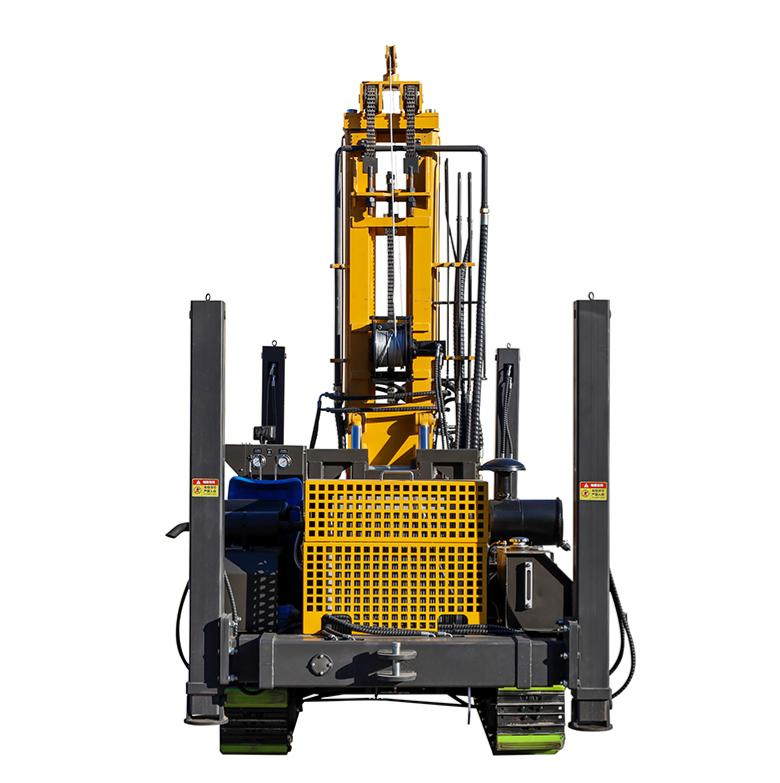

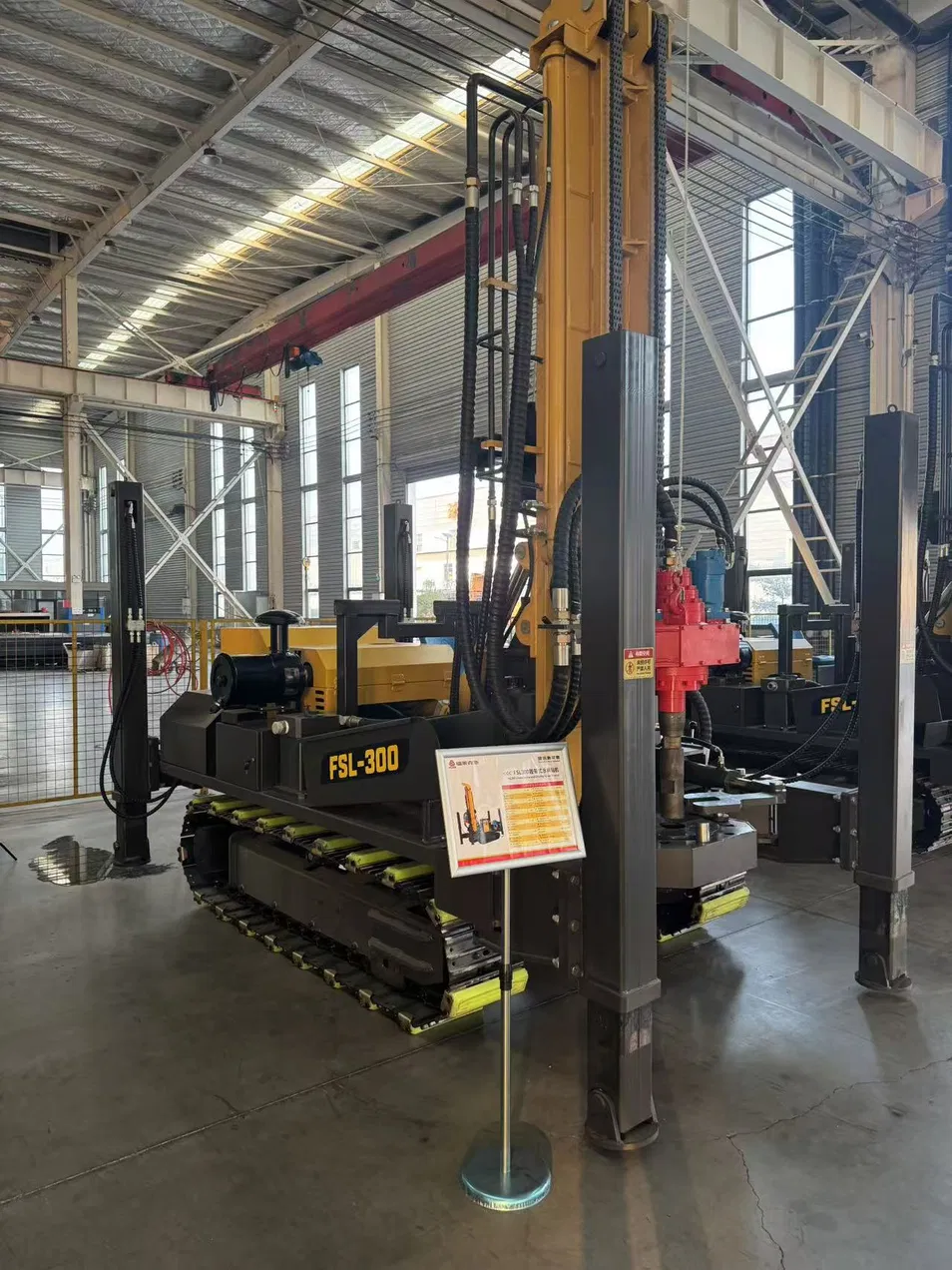

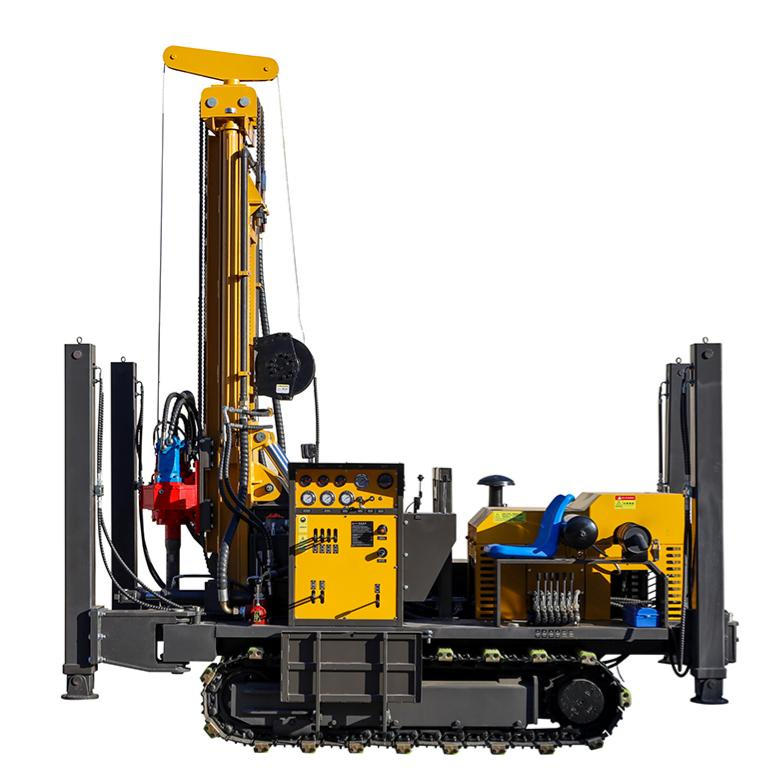

FSL300 Crawler-type Water Well Drilling Rig

The FSL300 crawler-type water well drilling rig is a high-performance drilling equipment, specially designed for water well construction and engineering survey applications. It provides strong and precisely adjustable drilling power through the drive system (diesel/electric motor) and hydraulic system (for drill pipes and drill bits), making it suitable for various rocky landforms.

Equipped with a heavy-duty crawler chassis, it ensures excellent mobility and operational stability in complex terrains. This drilling rig features a high degree of mechanization, user-friendly operation, and fast drilling, with a drilling depth of up to 300 meters.

⭐ Key Advantages

✔ Each rig is equipped with a safety valve to protect the cylinder and ensure work safety.

✔ Integrally cast gearbox with dual-motor power for large torque and low maintenance.

✔ Wide formation adaptability with two driving modes available.

✔ Retractable large mast to meet requirements of long casing drilling structures.

✔ Protective sleeves on every hydraulic oil pipe to extend service life.

✔ 4-hydraulic support leg structure for rapid horizontal adjustment without a crane.

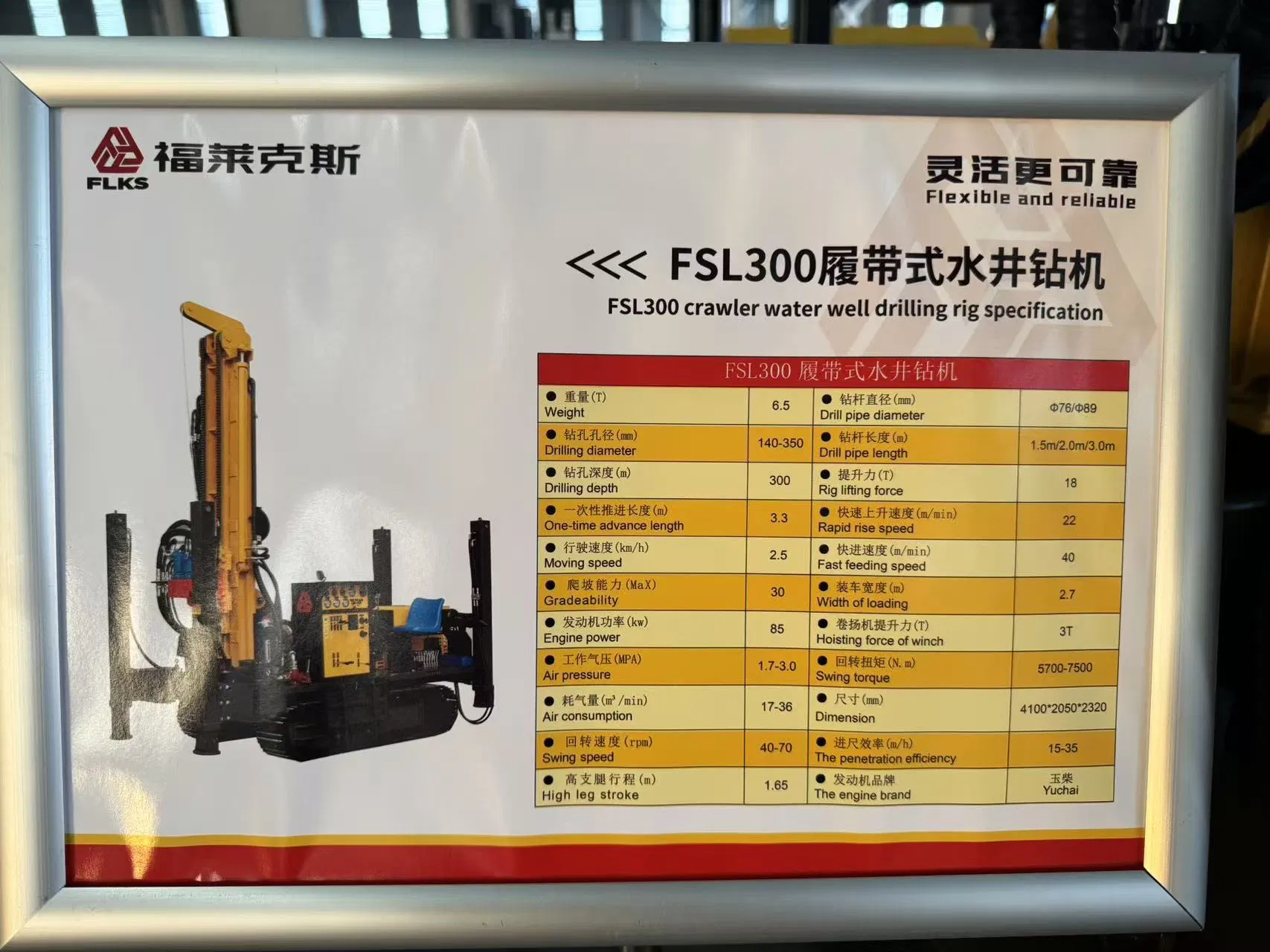

📊 Technical Specifications

Weight (kg)	6.5	Lifting Capacity (T)	18
Drilling Depth (m)	300	Load-carrying Width (m)	2.7
Single Advance Length (m)	3.3	Winch Main Unit Force (T)	3
Engine Power (kW)	85	Swivel Torque (N·m)	5700-7500
Air Consumption (m³/min)	17-36	Dimensions (mm)	410020502320
Swing Speed (rpm)	40-70	Engine Brand	Yuchai

🌱 Main Applications:

Human drinking water
Farmland & Pasture irrigation
Forestry projects
Geological exploration

⚙️ Main Configuration:

Engine: Tier III High-torque Diesel Engine
Hydraulic System: Precisely controlled pumps and valves
Landing Gear: Steel tracks with adjustable tension

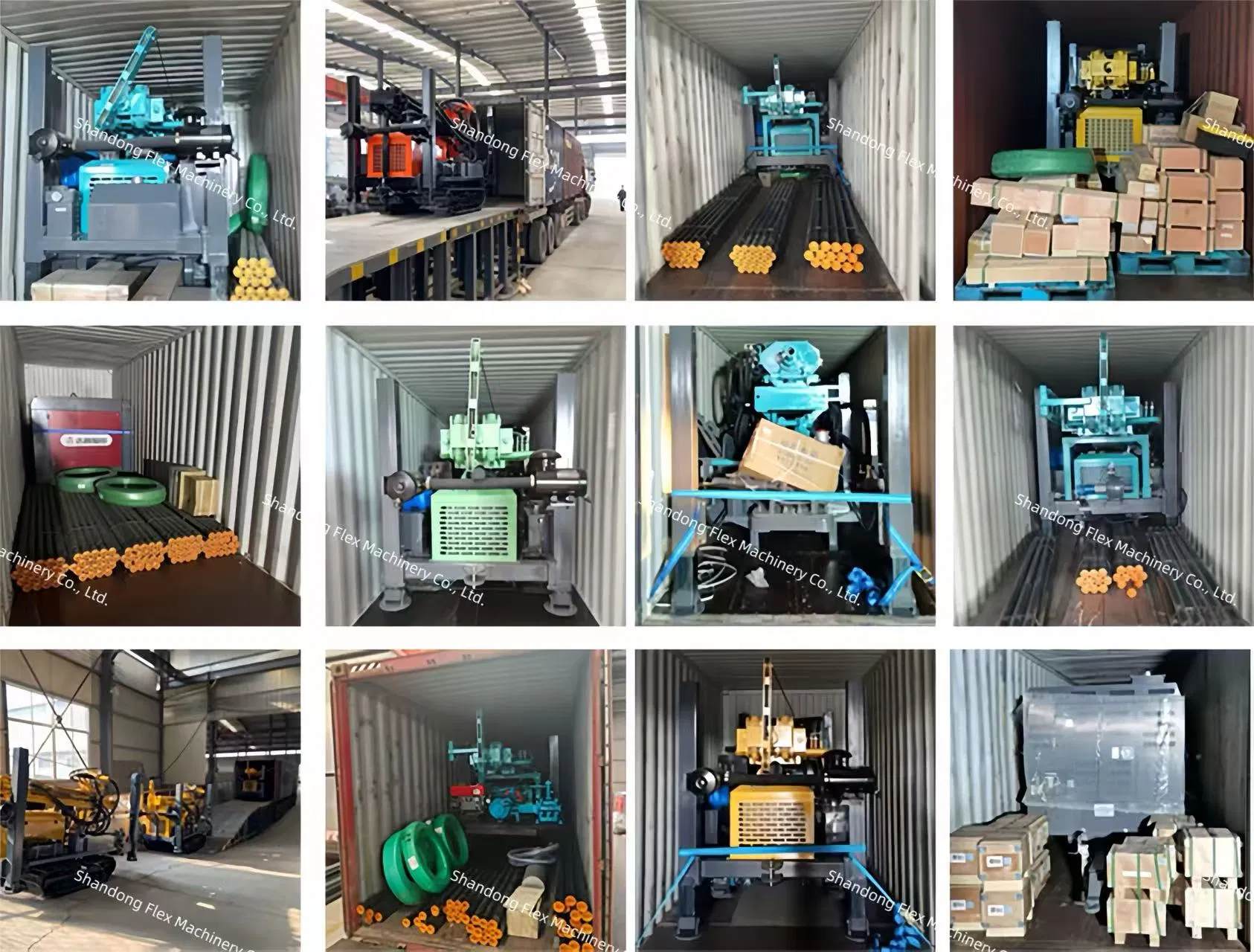

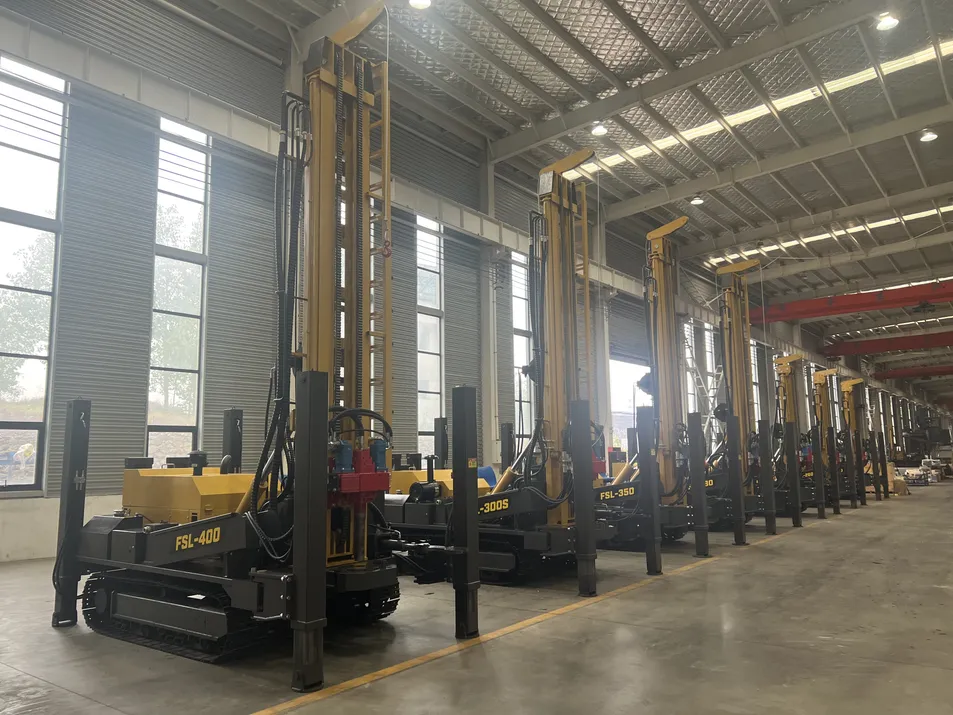

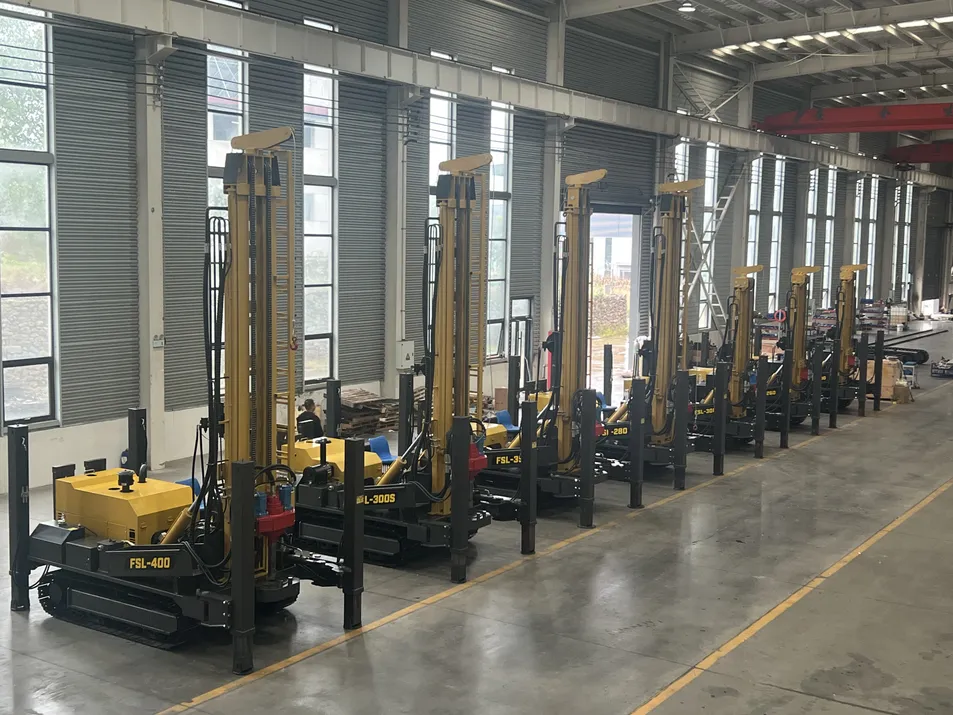

📦 Packing & Delivery

🛠️ After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

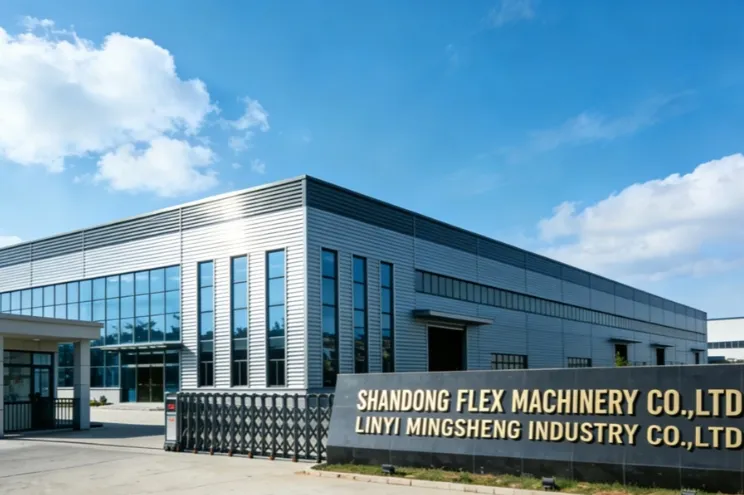

🏢 Manufacturing Profile

We are a comprehensive enterprise specializing in the research, manufacturing, and global sales of drilling equipment. With a modern production base covering 23,000 square meters, equipped with advanced production and testing facilities. Our professional team consists of more than 160 senior engineers and technicians.

Our product range covers drilling depths from 100 to 1500 meters, meeting the diverse needs of geological exploration, mining, and water conservancy projects. All products strictly comply with national quality system certifications.

📜 Certifications

❓ Frequently Asked Questions

Q: What is the maximum drilling depth of the FSL300 rig?

A: The FSL300 is designed to reach a maximum drilling depth of 300 meters, making it ideal for deep water well construction.

Q: What type of engine is installed in this drilling rig?

A: It is equipped with a high-torque, low-emission Yuchai turbocharged diesel engine, compliant with Tier III standards for high efficiency.

Q: Can the FSL300 handle rocky terrains?

A: Yes, it uses diamond bits and a high-performance hydraulic system specifically designed to handle various rocky landforms and complex geological conditions.

Q: What certifications do your drilling machines hold?

A: All our machines are ISO-certified. We also hold CE, RoHS, and TUV certifications, ensuring compliance with international quality and safety standards.

Q: Do you provide on-site training for new operators?

A: Yes, we offer both on-site and remote operation and maintenance training to ensure your team can operate the equipment safely and efficiently.

Q: How do you ensure the quality of the machine before delivery?

A: We have a dedicated quality inspection department that conducts a series of rigorous tests on every single machine to ensure optimal performance before shipment.
