Product Description

Basic Information

Model:JR-GOLD

Weight:>10T

Material:Carbon Steel

Certification:ISO9001:2008, CE

Warranty:2 Years

Condition:New

Package Size:3100cm * 2200cm * 1500cm

Capacity:1500 sets/Year

Product Overview

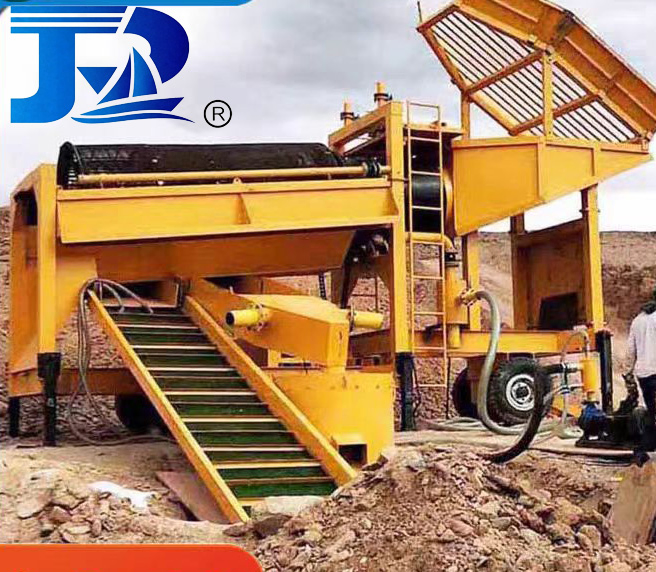

The Mobile Small-Scale Alluvial Gold Washing & Separation Plant is a cutting-edge, integrated system designed for small-scale mining, including alluvial gold and riverbed placer sites. This mobile unit combines trommel screening, mud washing, and sluice separation into one platform, eliminating complex setup and enabling rapid deployment to remote mining locations.

Designed for field use, the plant streamlines gold recovery: raw ore enters the hopper, passes through the trommel screen to separate debris, moves to the mud washing chamber where water jets break down ore, and then into the gravity sluice separator which captures gold particles while discharging waste tailings.

Technical Specifications

Model Designation	Standard Specification (JR-GW50)	Optional Upgrades
Processing Capacity	JR-GW50 (Standard)	JR-GW30 (3-30 t/h), JR-GW80 (50-80 t/h)
Core Components	Trommel Screen (1.2m dia), Mud Washing Chamber (1.2MPa), Gravity Sluice (4m), Feed Hopper (0.8m³)	Double-Layer Trommel, Centrifugal Concentrator, Water Recycling System, Automatic Feeder
Power Configuration	Main: 22KW Diesel Engine (Weichai); Aux: 5.5KW Motor	Dual Power System (Diesel/Electric), Solar Auxiliary Power (100W)
Mobility Features	Heavy-duty 12-inch rubber tires, Tow hitch, Manual parking brakes	Hydraulic Self-Propulsion (4WD), Foldable Design for narrow roads
Dimensions & Weight	6.5m × 2.2m × 2.8m; Operating Weight: 3.2 tons	Extended Sluice Version (8.0m length), Lightweight Aluminum Frame

Key Advantages

🚚

Rapid Deployment

Arrives ready for use. Users report starting production within 2 hours, cutting setup time by over 90% compared to fixed plants.

💎

High Recovery Rate

Optimized processing chain achieves 85-92% gold recovery, outperforming manual sluice systems by 30-40%.

⚙️

Low Operational Cost

Fuel efficiency (4-6 L/h) and minimal labor requirements (single operator) ensure maximum profitability for small operators.

🛠️

Customizable Design

Options for clay-heavy ore, ultra-fine gold capture, and water-scarce environment recycling systems.

Application Scenarios

✔ Alluvial Gold Mining: Perfect for riverbeds and floodplains. Follow gold-rich "pay streaks" with ease.
✔ Prospecting & Trial Mining: Acts as a mobile test lab to evaluate gold grades before large-scale investment.
✔ Small-Scale Production: Replaces manual panning, boosting daily recovery by up to 200%.
✔ Secondary Tailings Processing: Reprocesses old tailings to recover residual gold and boost total yield.

Frequently Asked Questions

Q1: What is the processing capacity of the standard JR-GW50 model? A1: The standard JR-GW50 processes approximately 50 tons of ore per hour. We also offer JR-GW30 (3-30t/h) and JR-GW80 (50-80t/h) for different project scales.

Q2: How efficient is the gold recovery process? A2: The system is engineered to achieve a recovery rate of 85-92%, significantly higher than traditional manual sluicing methods.

Q3: Can the plant be moved to remote locations? A3: Yes, it is equipped with heavy-duty rubber tires and a tow hitch, making it compatible with trucks or trailers for navigation through narrow roads and uneven terrain.

Q4: What are the power requirements? A4: The standard unit uses a 22KW diesel engine (Weichai brand). Optional dual-power systems (Diesel/Electric) are available for sites with grid access.

Q5: Is it suitable for clay-heavy ore? A5: Yes, we provide optional clay scrubbers in the mud chamber specifically designed to break down stubborn clay aggregates.

Q6: How much maintenance does the machine require? A6: The plant is designed for low maintenance. Wear-resistant components last over 5,000 hours, and daily upkeep usually takes less than 30 minutes.
